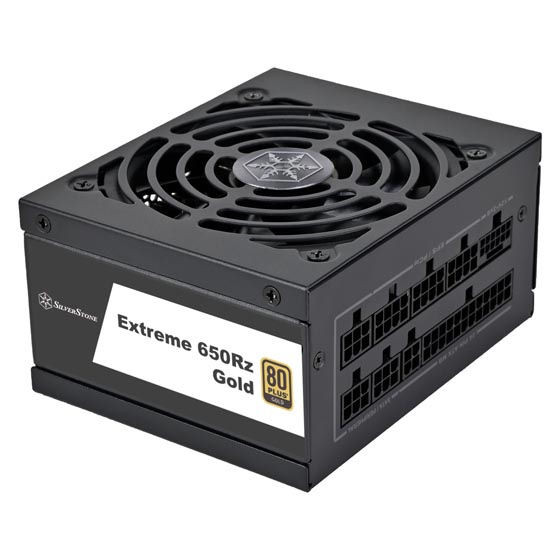

Silverstone SST-EX650R-GM Extreme 650Rz Gold 80 PLUS Gold 650W Full Modular SFX Power Supply

Price:
 $179.99
MPN:
 SST-EX650R-GM
Brand:
UPC:
 844761028268
Condition:
 NEW
Availability: Ships in 2 business days
.
Shipping:
 Calculated at checkout


Add to Wishlist

Click the button below to add the Silverstone SST-EX650R-GM Extreme 650Rz Gold 80 PLUS Gold 650W Full Modular SFX Power Supply to your wish list.

SHARE
Pin It

Product Description

  • SFX form factor for Small Form Factor (SFF) ecosystem usage
  • Equipped with a 12V-2x6 PCIe connector, compliant with Intel SFX 12V4.1 specification standards
  • 80 PLUS Gold Efficiency certified
  • Primary Japanese Capacitor
  • 24/7 continuous power output with 40℃ operating temperature
  • Ultra-silent 92mm Fluid Dynamic Bearing (FDB) cooling fan with intelligent deactivation function
  • Flat cables with exceptional flexibility
SST-EX650R-GM
Model (safety certification)
SST-SX0650MCGD-A
Color
Black (lead-free paint)
Max. DC Output
650W
Power density
818.9 W/L
Load Range
Output +3.3V +5V +12V +5VSB -12V
Max.(Amps) 20A 20A 54.1A 3.0A 0.3A
Peak (Amps) / / / / /
Min.(Amps) 0A 0A 0A 0A 0A
Range (%) ±3% ±3% ±3% ±3% ±10%
Line Reg.(%) ±1% ±1% ±1% ±1% ±1%
Ripple(mVp-p) 40mV 40mV 80mV 40mV 80mV
Combined +3.3V & +5V
100W
Combined +12V
650W
Input Voltage
90 ~ 264 Vrms
Input Frequency Range
47Hz ~ 63Hz
PFC
Active PFC（PF>0.9 at full load）
Efficiency
87% ~ 90%
MTBF
100,000 hours
Operating temperature
0°C ~ 40°C
Protection
Over Current Protection
Over Power Protection
Over Voltage Protection
Short Circuit Protection
Over Temperature Protection
Under Voltage Protection
Connectors
1 x 24 / 20-Pin motherboard connector
2 x 8 / 4-Pin EPS / ATX 12V connector
4 x 8 / 6-Pin PCIe connectors
6 x SATA connector
3 x 4-Pin Peripheral connector
Cooling System
Single 92mm FDB silent fan
Noise Level
0 dBA minimum
Certification
80 PLUS Gold
Form factor
SFX
Dimension
125mm (W) x 63.5mm (H) x 100mm (D)
4.92” (W) x 2.5” (H) x 5.12” (D)

Other Details

MPN:
SST-EX650R-GM
