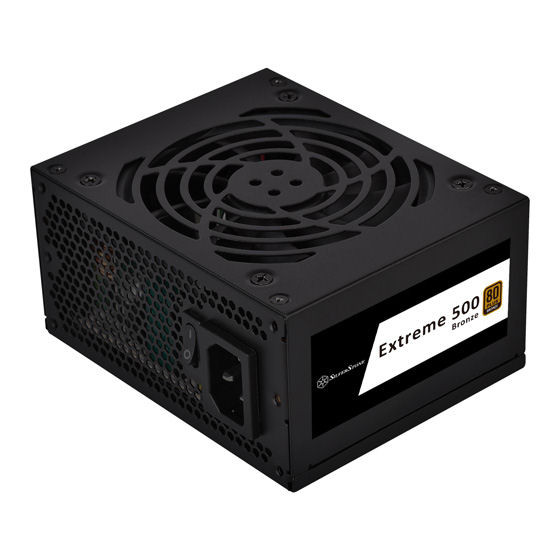

Silverstone SST-EX500-B Extreme 500 Bronze 80 PLUS Bronze 500W SFX

Price:
 $109.00
MPN:
 SST-EX500-B
Brand:
UPC:
 844761020613
Condition:
 NEW
Availability: Ships in 2 business days
.
Shipping:
 Calculated at checkout


Add to Wishlist

Click the button below to add the Silverstone SST-EX500-B Extreme 500 Bronze 80 PLUS Bronze 500W SFX to your wish list.

SHARE
Pin It

Product Description

￭ Supports standard SFX form factor and ATX via included bracket

￭ 500W 24/7 continuous power output with 40℃ operating temperature

￭ Silent running 92 mm fan with 18dBA minimum

￭ Japanese primary capacitor

￭ High efficiency with 80 PLUS Bronze certification

￭ Class-leading single +12V rail

￭ PCIe 8-Pin and PCIe 6-Pin connectors support



Product No.
SST-EX500-B
Max. DC Output
500W
Power density
630W per liter
Load Range

 +3.3V +5V +12V +5VSB -12V
Max.(Amps)
 20A 20A 41.66A 2.5A 0.3A
Min.(Amps)
 0.0A 0.0A 0.0A 0.0A 0.0A
Range (%)
 ±5% ±5% ±5% ±5% ±10%
Line Reg.(%)
 ±1% ±1% ±1% ±1% ±1%
Ripple(mVp-p)
 50mV 50mV 120mV 50mV 120mV
Model (safety certification)
SST-SX0500FCBR-A
Color
Black (lead-free paint)
Combined +3.3V & +5V
120W
Combined +12V
499.2W
Input Voltage
90 ~ 264 Vrms
Input Frequency Range
47Hz ~ 63Hz
PFC
Active PFC（PF>0.9 at Full Load）
Efficiency
82% ~ 85% at 20% ~ 100% loading
MTBF
100,000 hours
Operating temperature
0°C ~ 40°C
Protection
Over Current Protection
Over Power Protection
Over Voltage Protection
Short Circuit Protection
Over Temperature Protection
Connectors
1 x 24 / 20-Pin motherboard connector
1 x 8-Pin EPS / ATX 12V connector
1 x 8 / 4-Pin EPS / ATX 12V connector
2 x 8 / 6-Pin PCIe connectors
3 x SATA connectors
2 x 4-Pin Peripheral connectors
1 x 4-Pin Floppy connector
Cooling System
Silent 92mm fan
Form factor
Noise Level
18 dBA minimum
Dimension
125 mm (W) x 63.5 mm (H) x 100 mm (D)
4.92" (W) x 2.5" (H) x 3.94" (D)
Weight
1.02 kg
Certification
80 PLUS Bronze

Other Details

MPN:
SST-EX500-B
