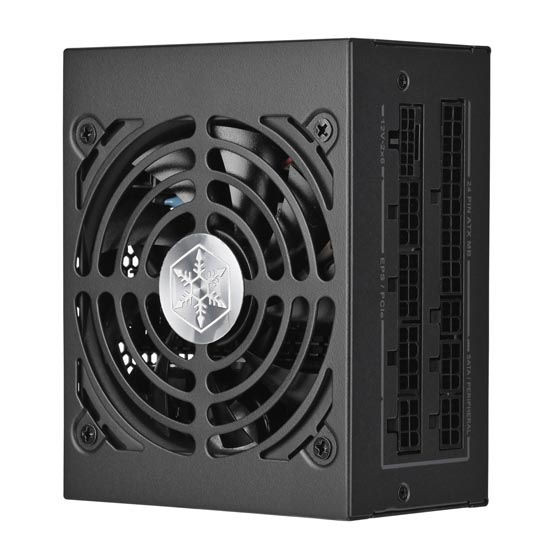

Silverstone SST-EX1000R-PM Extreme 1000Rz Platinum Cybenetics Platinum 1000W SFX 4 PCIe 5 Fully Modular Power Supply

Price:
 $269.99
MPN:
 SST-EX1000R-PM
Brand:
UPC:
 844761028855
Condition:
 NEW
Availability: Ships in 2 business days
.
Shipping:
 Calculated at checkout


Add to Wishlist

Click the button below to add the Silverstone SST-EX1000R-PM Extreme 1000Rz Platinum Cybenetics Platinum 1000W SFX 4 PCIe 5 Fully Modular Power Supply to your wish list.

SHARE
Pin It

Product Description

  • SFX form factor designed for the Small Form Factor (SFF) ecosystem.
  • Equipped with Gen5 12V-2x6 PCIe connector, meeting Intel SFX12V V4.1 specification standard
  • Cybenetics Platinum efficiency certification
  • 24/7 continuous power output with 40℃ operating temperature
  • Ultra-silent 92mm FDB fan with intelligent fan deactivation function
  • Flexible embossed wire design
  • Fully Modular design
  • All Japanese electrolytic capacitors
Combined +3.3V & +5V
100W
Combined +12V
1000W
Input Voltage
90 ~ 264 Vrms
Input Frequency Range
47Hz ~ 63Hz
PFC
Active PFC.（PF>0.9 at Full Load）
Efficiency
≥89% & <91% overall efficiency
MTBF
100,000 hours
Operating temperature
0°C ~ 40°C
Protection
Over Current Protection
Over Power Protection
Over Voltage Protection
Short Circuit Protection
Over Temperature Protection
Under Voltage Protection
Connectors
1 x 24 / 20-Pin motherboard connector
2 x 8 / 4-Pin EPS / ATX 12V connector
4 x 8 / 6-Pin PCIe connectors
1 x 12+4-Pin 12V-2x6 connector
8 x SATA connectors
3 x 4-Pin Peripheral connector
1 x 4-Pin Floppy connector
Cooling System
Silent 92mm FDB fan
Noise Level
0 dBA minimum
Certification
Cybenetics Platinum
Form factor
SFX
Dimension
125mm (W) × 63.5mm (H) × 100mm (D)

Other Details

MPN:
SST-EX1000R-PM
