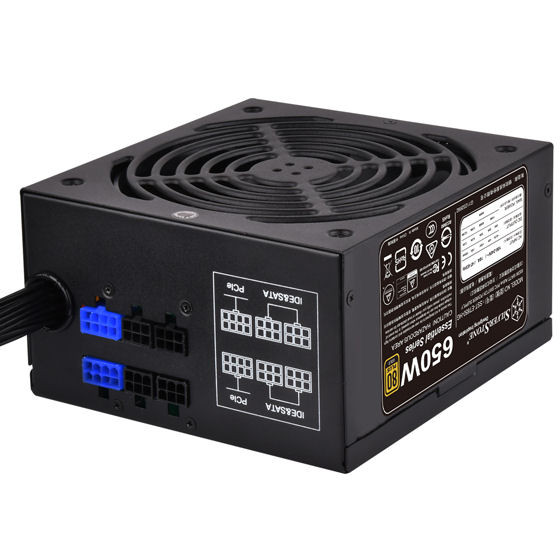

Silverstone SST-ET650-HG 650W 80 PLUS Gold Semi Modular ATX Power Supply

Price:
 $119.00
MPN:
 SST-ET650-HG
Brand:
UPC:
 844761015800
Condition:
 NEW
Availability: Ships in 2 business days
.
Shipping:
 Calculated at checkout


Add to Wishlist

Click the button below to add the Silverstone SST-ET650-HG 650W 80 PLUS Gold Semi Modular ATX Power Supply to your wish list.

SHARE
Pin It

Product Description

￭ High efficiency with 80 PLUS Gold certification

￭ Semi-modular cables facilitate cable management

￭ 24/7 continuous power output with 40°C operating temperature

￭ Class-leading single +12V rail

￭ Silent running 140mm fan with 18 dBA

￭ PCIe 8pin and PCIe 6pin connectors support

￭ All-black flat cables design

￭ Dual EPS 8pin with multiple PCI-E 8 / 6pin connectors support (V1.2)



Model No.
SST-ET650-HG
Max. DC Output
650W
Power density
315W per liter
Load Range

 +3.3V +5V +12V +5VSB -12V
Max.(Amps)
 20A 20A 53A 2.5A 0.3A
Peak (Amps)
 / / / 3.0A /
Min.(Amps)
 0A 0A 0A 0A 0A
Range (%)
 ±5% ±5% ±5% ±5% ±10%
Line Reg.(%)
 ±1% ±1% ±1% ±1% ±1%
Ripple(mVp-p)
 50mV 50mV 120mV 50mV 120mV
Color
Black（Lead-Free Paint）
Combined +3.3V & +5V
110W
Combined +12V
636W
Input Voltage
90 ~ 264 Vrms
Input Frequency Range
47Hz ~ 63Hz
PFC
Active PFC（PF>0.9 at full load）
Efficiency
87% ~ 90% at 20% ~ 100% loading
MTBF
100,000 hours
Operating temperature
0°C ~ 40°C
Protection
Over current protection
Over power protection
Over voltage protection
Short circuit protection
Connectors
V1.1
1 x 24 / 20-Pin motherboard connector (500mm)
1 x 8 / 4-Pin EPS / ATX 12V connector (750mm)
4 x 8 / 6-Pin PCIe connector ("500mm / 150mm" x 2)
9 x SATA connector ("500mm / 150mm / 150mm" x 3)
3 x 4-Pin Peripheral connector (500mm / 150mm / 150mm)
1 x 4-Pin Floppy connector (500mm / 150mm / 150mm / 150mm)

V1.2
1 x 24 / 20-Pin motherboard connector (500mm)
*1 x 8-Pin EPS and 1 x 4-Pin + 4-Pin ATX 12V connector (750mm / 150mm)
4 x 8 / 6-Pin PCIe connector ("500mm / 150mm" x 2)
9 x SATA connector ("500mm / 150mm / 150mm" x 3)
3 x 4-Pin Peripheral connector (500mm / 150mm / 150mm)
1 x 4-Pin Floppy connector (500mm / 150mm / 150mm / 150mm)
Cooling System
Single 140mm silent fan
Form factor
Noise Level
18dBA minimum
Dimension
150 mm (W) x 86 mm (H) x 160 mm (D)
5.91" (W) x 3.39" (H) x 6.3" (D)
Weight
1.97 Kg
Certification
80 PLUS Gold

Other Details

MPN:
SST-ET650-HG
