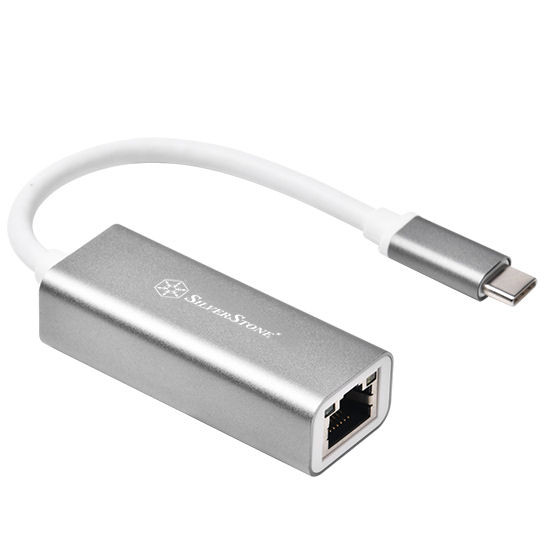

Silverstone SST-EP13C USB 3.1 Type-C Gen1 to RJ45 Gigabit Ethernet Network Adapter

Price:

$31.99

MPN:

SST-EP13C

Brand:

SILVERSTONE

UPC:

844761016555

Availability: Ships in 2 business days

Shipping:

Calculated at checkout

Add to Wishlist

Product Description

SilverStone’s EP13 is a compact Gigabit Ethernet network adapter in chic and qualified design. It adheres to the latest USB 3.1 Type-C Gen1 specification in providing conversion from USB to a RJ45 network socket that supports 1000Mbps Gigabit high speed transfer capability. EP13 is a great addition to notebook computers such as MacBooks that do not have network socket but needs a physical network connection.

￭ Latest USB 3.1 Type-C Gen1 interface, compatible with USB 3.0 / 2.0 / 1.1

￭ Converts to a RJ45 network socket with support for 10/100/1000Mbps

￭ Supports twisted pair crossover detection and auto-correction (HP Auto-MDIX) technology

￭ Supports Wake-on-LAN and ”RealWoW” (Wake-on-LAN) technology

Model No.	SST-EP13C
Color	Charcoal
Material	Plastic + Aluminum
USB interface	USB 3.1 Type-C Gen1 Male
Chipset	Realtek RTL8153
IEEE Standard	Supports full duplex flow control (IEEE 802.3x) Fully compliant with IEEE 802.3 and IEEE 802.3u Supports IEEE 802.1P layer 2 priority encoding Supports IEEE 802.1Q VLAN Tagging Supports IEEE 802.3az (Energy Efficient Ethernet: EEE)
Ethernet port	RJ45
TOE (TCP Offload Engine)	Microsoft NDIS5, NDIS6 checksum offload (IPv4, IPv6, TCP, UDP) and segmentation task-offload (large send v1 and large send v2) support Supports jumbo frame to 9K bytes
Operating temperature	0℃ ~ 45℃
Microsoft AOAC (Always On Always Connected)	Supports 16-set 128-byte Wake-Up frame pattern exact matching Supports link change wake up Supports Microsoft WPD (Wake Packet Detection) Supports protocol offload (ARP & NS)
Intel CPPM (Converged Platform Power Management)	Supports L1 with 3ms BESL (USB 2.0) Dynamic LTM messaging (USB 3.0) Supports U1/U2 (USB 3.0) Supports selective suspend
Operation Humidity	10%RH ~ 85%RH
Cable length	100mm
Operating system support	Microsoft Windows XP / Vista / 7 / 8 /10 (32-bits, 64-bits), or future release versions Mac OS 10.5 or above
Net weight	25g
Dimension	24mm (W) x 16.5mm (H) x 60.3mm (D) 0.94" (W) x 0.65" (H) x 2.37" (D)
