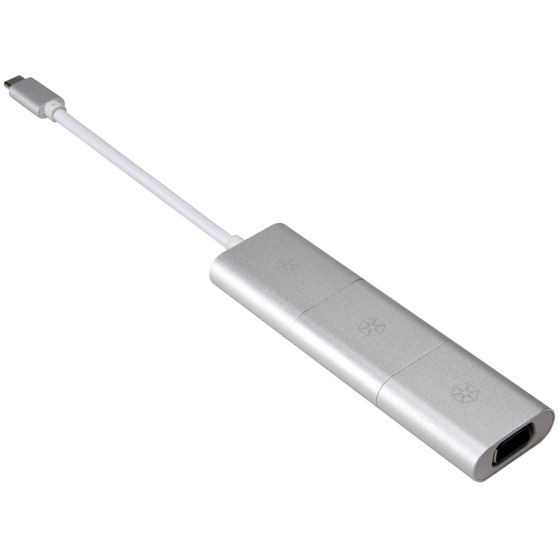

To fulfill the need for high resolution output from PC, tablets or smartphones to larger display devices such as TVs, computer monitors, or projectors, SilverStone created EP11, a USB 3.1 Type-C to MiniDP, HDMI and VGA combination connector adapter. This adapter is compliant with DisplayPort Alt Mode specification that provides high throughput up to Ultra HD resolutions of 4096 x 2160 (4K x 2K). The EP11 can dismantle into three components that operate independently for plug and play with compatible devices. In total, this versatile adapter kit supports Type-C to MiniDP, Type-C to HDMI, Type-C to VGA, MiniDP to HDMI, MiniDP to VGA, and HDMI to VGA, making it a handy tool for near limitless video applications.
■ Supports Thunderbolt 3 Type-C interface
■ 4K high-quality output for resolution of up to 4096 x 2160 (4K x 2K)
■ Three-piece modular design supports six unique video transfer options
■ Support Type-C to MiniDP / HDMI / VGA port
■ Support MiniDP to HDMI / VGA port
■ Support HDMI to VGA port
■ Aluminum alloy shell for excellent feel and durability
Color | Silver |
Material | Aluminum, plastic |
Operating temperature | 5°C ~ 35°C |
Operation Humidity | 20%RH ~ 80%RH |
Cable length | 100mm |
Net weight | 58g±5g |
Operating system support | Microsoft Windows 10/8/8.1 (32-bit, 64-bit), or future release versions Mac OS X EI Capitan 10.8 or above |
Dimension | 35mm (W) x 12mm (H) x 123mm (D), (Total) 1.38" (W) x 0.47" (H) x 4.84" (D), (Total) |
Type-C to MiniDP Adapter | |
Chipset | Cypress CYPD1120 |
Signal input | USB 3.1 Type-C male |
Signal output | Active MiniDP female |
Support DP version | V1.2 |
DP port resolution support | Up to 4096 x 2160 (4K x 2K) (DisplayPort Alt mode) |
Dimension | 35mm (W) x 12mm (H) x 41mm (D) 1.38" (W) x 0.47" (H) x 1.61" (D) |
MiniDP to HDMI Adapter | |
Chipset | Chrontel CH7525 |
Signal input | MiniDP Male |
Signal output | HDMI female (HDMI V1.4) |
HDMI port Resolution support | Up to 4096 x 2160 (4K x 2K) at 30Hz |
Dimension | 35mm (W) x 12mm (H) x 51mm (D) 1.38" (W) x 0.47" (H) x 2.01" (D) |
HDMI to VGA Adapter | |
Chipset | Chrontel CH7101B |
Signal input | HDMI male |
Signal output | VGA female |
VGA port Resolution support | Up to 1920 x 1200 at 60Hz |
Dimension | 35mm (W) x 12mm (H) x 52mm (D) 1.38" (W) x 0.47" (H) x 2.05" (D) |
