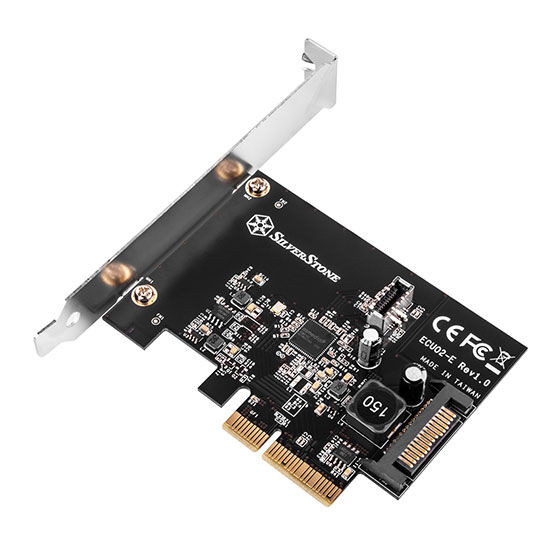

Silverstone SST-ECU02-E USB 3.2 Gen 2 Internal 20Pin Key-A PCIe Card

Price:

$59.99

MPN:

SST-ECU02-E

Brand:

SILVERSTONE

UPC:

844761020477

Condition:

NEW

Availability: Ships in 2 business days

Shipping:

Calculated at checkout

Add to Wishlist

Product Description

￭ Includes one USB 3.2 Gen 2 internal 20pin Key-A connector

￭ PCIe Gen 3.0 x2 throughput up to 16GT/s

￭ Compliant with eXtensible Host Controller Interface (xHCI) specification Revision 1.1

￭ Compliant with USB Attached SCSI Protocol Revision 1.0 (UASP)

￭ Includes optional low profile slot cover for supporting low profile cases

Model No.	SST-ECU02-E
Power requirement	5V via SATA 15pin power connector
Form factor	Low profile - PCIe 3.0 x2 (16GT/s)
USB Ports	Internal 20 pin Key-A connector for USB 3.2 Gen2 Type-C port
USB 3.1 controller	ASMEDIA ASM3142
Operation Temperature	Operating temperature range: 0 ~ 70 ºC Storage temperature range: -20 ~ +70 ºC Humidity range: 5 ~ 95% RH
Transmitting Speed	USB 3.2 Gen2 (10Gbps), USB 3.1 Gen 1 / USB 3.0 (5Gbps), USB 2.0 (480Mbps), USB 1.1 (12Mbps)
Operating system support	Windows 7* / 8 / 8.1 / 10 (32bit / 64bit) or future release version, Ubuntu / Linux / Mac OS*
Power Management	Support USB 3.2 and USB 2.0 link power management
Current protection	Support over current detection and protection
Net weight	47g
Dimension	123mm (W) x 21mm (H) x 105mm (D) 4.84" (W) x 0.83" (H) x 4.13" (D)
Extra	UASP and Multiple INs function
