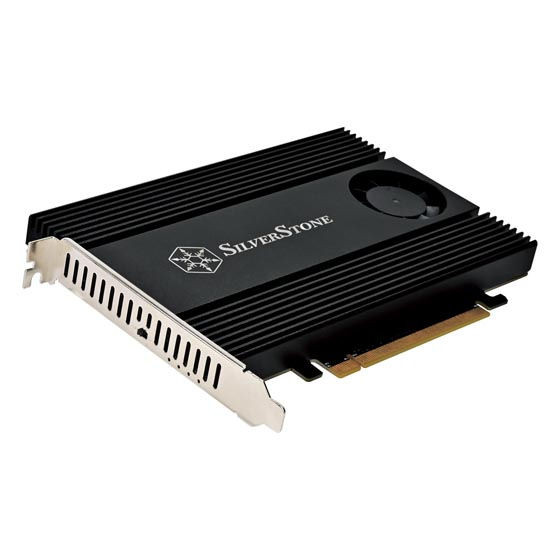

Silverstone SST-ECM40 PCIe4.0 x16 Quad M.2 NVMe SSD Adapter Card

Price:
 $99.99
MPN:
 SST-ECM40
Brand:
UPC:
 844761028138
Availability: Ships in 2 business days
.
Shipping:
 Calculated at checkout


Add to Wishlist

Click the button below to add the Silverstone SST-ECM40 PCIe4.0 x16 Quad M.2 NVMe SSD Adapter Card to your wish list.

SHARE
Pin It

Product Description

*The motherboard or add-on card must support PCIe bifurcation, allowing the PCIe x16/x8 slot to be split into 4x4 or 4x2 configurations.　

  • Support 4 x NVMe M.2 SSD (M Key) via PCIe x16 interface
  • Supports M.2 SSDs in 2230, 2242, 2260, and 2280 form factors
  • 40mm x 40mm dual ball bearing cooling fan
  • Cooling fan On/Off power switch
  • Data center-grade reliability
  • Support USAP and TRIM
Model No.
SST-ECM40
Color
Black
Controller-IC
TPS56221DQPT
PCB Level
UL 94-V0
Interface
PCI-Express x 16
SSD Interface
M.2 (NGFF) M Key
Number of Drives
４
Support Length of M.2 SSD
22x30mm, 22x42mm, 22x60mm, 22x80mm
Module Key
PCIe x 4 NVMe-based M key
LED indicator
The indicator lights will have two modes：
steady and blinking blue light, based on the signals from the motherboard and SSD.
Fan
Speed
  • 7000 RPM ±10%
Dimension
  • 40mm(W) x 10mm(H) x 40mm(D)
Bearing
  • Dual ball bearing
Heatsink
Material
  • Aluminum
Dimension
  • 109.3mm (W) x 14.2mm (H) x 168mm (D)
    4.3" (W) x 0.56" (H) x 6.61" (D)
Thermal Pad
Thickness
  • 1mm
operating temperature
  • -25℃ ~70℃
Thermal conductivity
  • 3W/m.k
Quantity
  • 4
Dimension
  • 22mm (W) x 1mm (H) x 70mm (D)
    0.87" (W) x 0.04" (H) x 2.76" (D)
Environment
Operating Tempurature
  • 5°C~55°C
Operating Humidity
  • 20%RH~80%RH
Storage Temperature
  • -20°C~50°C
Storage Humidity
  • 20%RH~80%RH
Dimension
147.74mm (W) x 21.59mm (H) x 181mm (D)
5.82" (W) x 0.85" (H) x 7.13" (D)

Other Details

MPN:
SST-ECM40
