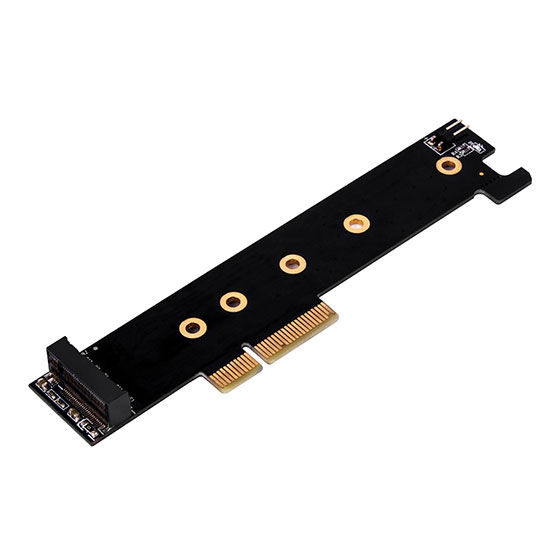

Silverstone SST-ECM26 1 x M.2 (M Key) to 1 x PCI-E x4 Low Profile Converter

Price:
 $24.99
MPN:
 SST-ECM26
Brand:
UPC:
 844761017989
Availability: Ships in 2 business days
.
Shipping:
 Calculated at checkout


Add to Wishlist

Click the button below to add the Silverstone SST-ECM26 1 x M.2 (M Key) to 1 x PCI-E x4 Low Profile Converter to your wish list.

SHARE
Pin It

Product Description

￭ Converts one M.2 port (M key) into one PCIe x 4 interface

￭ Only 31mm tall when installed, easily fits in 1U chassis

￭ Built-in LED indicator for showing PCIe NVMe status

￭ Supports 2230, 2242, 2260, 2280, 22110 length M.2 SSD

￭ No driver installation required



Model No. SST-ECM26
LED indicator PCIe M.2 SSD Read / Write LED: Blue blinking
Interface PCI Express x4
SSD Interface M.2 (NGFF)
Module Key PCIe x 4 NVMe-based M key
Operating system support Microsoft Windows 10 (32bit/64bit)/8.1/8/7 (32bit/64bit) or future release version
Mac OS 10.2.8 or above
Linux
Net weight 34.15g
Support Length of M.2 SSD 30mm, 42mm, 60mm, 80mm, 110mm
Dimension 31mm (W) x 10.2mm (H) x 130mm (D)
1.22" (W) x 0.4" (H) x 5.12" (D)

Heatsink
Material Aluminum
Net Weight and dimension Heatsink : 22mm (W) x 4.65mm (H) x 100mm (D), 17 g

Thermal Pad
Thermal conductivity 1.5W/m.k
Operating temperature -40 °C ~ 180 °C
Thermal pad thickness 0.75mm, 1.5mm
Net Weight and dimension Blue Pad：20mm (W) x 1.5mm (H) x 700mm (D), 6g
Gray Pad：20mm (W) x 0.75mm (H) x 700mm (D), 2g

Other Details

MPN:
SST-ECM26
