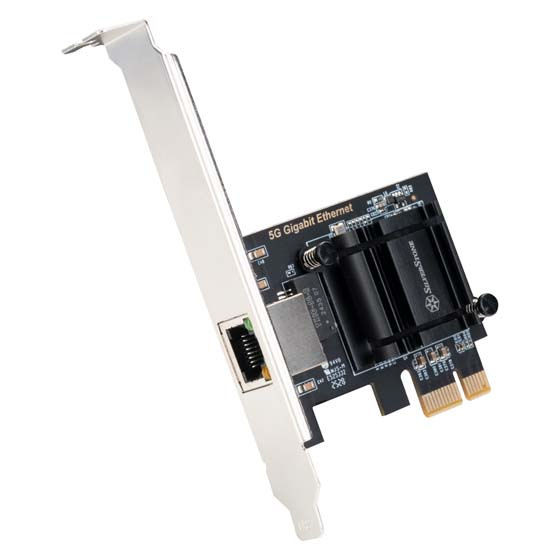

Silverstone SST-ECL02 5Gbps RJ45 Network PCI Express Card

Price:
 $41.99
MPN:
 SST-ECL02
Brand:
UPC:
 844761030216
Availability: Ships in 2 business days
.
Shipping:
 Calculated at checkout


Add to Wishlist

Click the button below to add the Silverstone SST-ECL02 5Gbps RJ45 Network PCI Express Card to your wish list.

SHARE
Pin It

Product Description

  • Up to 5Gbps network speed, ideal for SMB server upgrades, high-speed NAS connectivity, and workstation data transfers
  • Supports low-profile design for space-saving installation
  • Supports 10M/100M/1000M/2.5G/5G BASE-T (IEEE 802.3) transmission speeds
  • Supports IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3bz
  • Supports Wake-On-LAN and RealWoW! remote wake functionality
  • Supports PXE boot, allowing operating systems to be downloaded and executed from network servers
  • Supports Extended Next Page capability (XNP) auto-negotiation
  • Supports Realtek “Dragon feature” bandwidth management software
  • Supports crossover detection and auto-correction
  • Supports power down, no-link power saving, and PHY disable modes
  • Supports Realtek “Dragon feature” bandwidth management software
Model No.
SST-ECL02
Controller-IC
Realtek RTL8126
Ports
RJ45 X 1
Interface
PCIe Gen3X1
Transmitting Speed
Maximum 5Gbps
Brackets
Supports standard and low profile brackets
LED indicator
5Gbps: Green Light, 2.5Gbps/Others: Blue Light
Operating system support
Windows® 10, 11 or later, Linux kernel up to 6.4 or later
Dimension
120mm(W)x 18mm(H)x 72mm(D)



Other Details

MPN:
SST-ECL02
