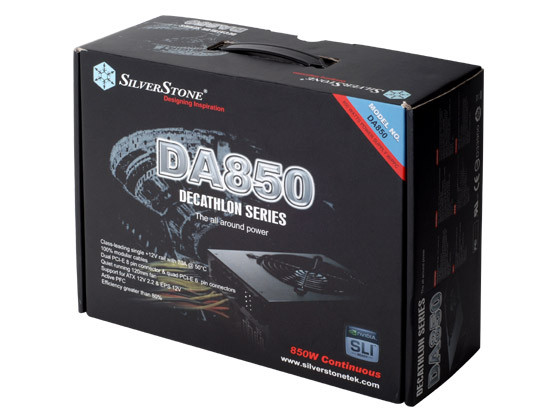

Silverstone SST-DA850 850Watt Modular Power Supply

Price:
 $175.00
MPN:
 DA850
Brand:
Condition:
 NEW
Availability: Ships in 2 business days
Ships in 2 business days
Shipping:
 Calculated at checkout


Sorry but this item is currently unavailable.

Please check back at a later stage.

Click the button below to add the Silverstone SST-DA850 850Watt Modular Power Supply to your wish list.

SHARE

Product Description

Introduction
With the knowledge that single +12V rail is the way for next generation power supply, SilverStone Technology continues the expansion of Decathlon series power supplies, offering enthusiasts more flexible and greater output choices to handle their system. The Decathlon DA850 power supply hosts a full array of amenities such as quad PCI-E connectors, 100% modular cable system, bigger and quieter 120mm cooling fan, while still maintaining a typical efficiency of 80% and better. All these combined with powerful 70A single +12V rail output gives DA850 the power superiority in its class.
* The all-around single +12V rail output power with advantage of 100% modular cable system!

Special Feature
Class-leading single +12V rail with 70A @ 50Ž
100% modular cables
Dual PCI-E 8 pin connector or quad PCI-E 6 pin connectors
Quiet running 120mm fan
Support for ATX 12V 2.2 & EPS 12V
Active PFC
Efficiency greater than 80%
Japanese primary capacitor



Model No.
SST-DA850
 Max. DC Output
850W
Load Range

+3.3V +5V +12V +5VSB -12V -5V
Max.(Amps)
28A 30A 70A 4.0A 0.5A /
Peak (Amps)
/ / / / / /
Min.(Amps)
0A 1A 3A 0.1A 0A /
Range (%)
+/-3% +/-3% +/-3% +/-5% +/-10% /
Line Reg.(%)
}1% }1% }1% }1% }1% /
Ripple(mVp-p)
50mV 50mV 120mV 50mV 120mV /
 combined +3.3, +5V
180W Max
 combined +12V
840W / 70A
 Input Voltage
90V ~ 264V (Auto Range)
 Input Frequency Range
47Hz ~ 63Hz
 PFC
Active PFC (PF>0.99 at full load)
 Efficiency
>80%
 MTBF
100,000 hours at 25‹C , full load
 Operating temperature
0 ~ 50‹C
 Protection
Over current protection, Over power protection, Over voltage protection, Short circuit protection
 Connectors
1 x 24-pin motherboard connector (550mm)
1 x 8-pin EPS12V connector (750mm)
1 x 4-pin ATX12V connector (550mm)
2 x 8-pin PCI-E connector (550mm)
2 x Dual 6-pin PCI-E connector (550mm)
2 x triple SATA connector (500mm +250mm + 250mm)
2 x triple 4-pin IDE & single floppy power connectors
(500mm + 250mm + 250mm + 150mm)
 Color
black (lead-free paint)
 Cooling System
Single 120mm ball bearing fan
 Noise Level
22 dBA minimum
 Dimension
150 mm (W) x 86 mm (H) x 180 mm (D)
 Weight
2.6 kg
 Certification
CrossFire
 Other

Other Details

MPN:
DA850
