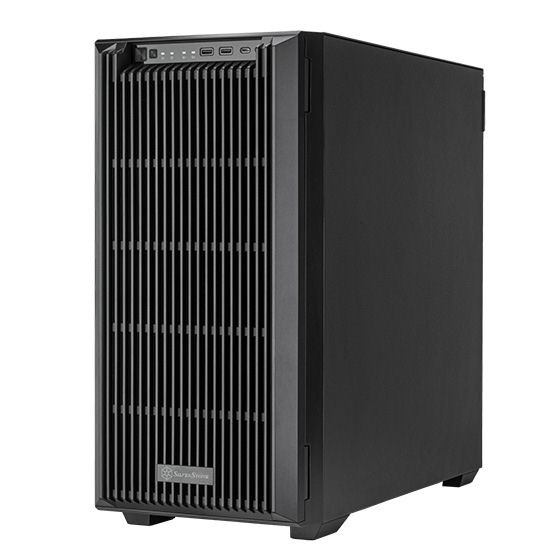

Silverstone SST-CS383 8-Bay SAS-12G / SATA-6G Hot Swap SSI-EEB / E-ATX NAS Chassis

Price:

$369.99

MPN:

SST-CS383

Brand:

SILVERSTONE

UPC:

844761028725

Availability: Ships in 2 business days

Shipping:

Calculated at checkout

Add to Wishlist

Product Description

8 hot-swappable drive trays to accommodate up to 8 x 3.5” or 2.5” SAS-12G / SATA-6G drives with two LED indicators for displaying drive operation status
Supports E-ATX / SSI-EEB motherboards
Compatible with 420mm liquid cooling radiator
Flexible front expansion slot for 3 x 5.25” devices or secondary PSU slot ^[3]
Support a maximum length of 340mm expansion/interface cards
Support multiple graphics cards configuration with 8 PCI expansion slots
Additional 3.5” x 1 + 2.5” x 2 or 2.5” x 4 device compatibility internally.
Front I/O includes: 1 x USB Type-C, 2 x USB 3.0 & 1 x combo audio
Dust filters included in key areas

Model No.

SST-CS383

Material

Aluminum Parts、Steel Plate

Motherboard

SSI-EEB, SSI-CEB, Extended ATX, ATX, Micro-ATX, Mini-ITX

HDD backplane

backplane

8-port SAS 12Gbit/s / SATA 6Gbit/s ^[1]

power connector

4 pin peripheral x 2, 15 pin SATA x 2

interface

SATA drive up to 6 Gbit/s (depends on drive speed)
SAS drive up to 12 Gbit/s (depends on drive speed^[1]

Drive bay

External

3.5” / 2.5” SAS / SATA external hot-swapping x 8
5.25” x 1
5.25” x 3

Internal

3.5” x 1 + 2.5” x 2 or 2.5” x 3

Cooling system

Rear

120mm x 1 / 140mm x 1(Pre-installed 140mm x1 black fan)

Top

120mm x 3 / 140mm x 3

Internal

92mm x 2(Pre-installed 92mm x2 black fans)

Radiator support

Rear

120mm / 140mm

Top

120mm / 140mm / 240mm / 280mm / 360mm / 420mm ^[2]

Limitation of CPU cooler

w/ GPU support bracket installed: 158mm
w/o GPU support bracket installed: 186mm

Expansion slot

Limitation of expansion card

Length:340mm
Width:164mm

Power supply

Standard ATX (PS2)

Limitation of PSU

Primary PSU slot:240mm
Secondary PSU slot:200mm (Occupies front 5.25” x 3 drive bays) ^[3]

Front I/O port

USB Type-C x 1
USB 3.0 x 2
Combo audio x 1

LED Indicators

Chassis

Power LED x 1: Blue
HDD Access x 1: White blinking
LAN LED x 2: Green

HDD Tray

HDD Power LED: Green
HDD Access : Blue blinking

Dimension

248 mm (W) x 528 mm (H) x 588 mm (D), 76,95 litres

Remark

^[1] Mini-SAS HD (SFF8643) to SATA 7 pin cable and 12 Gbit/s SAS HD card required for 12 Gbit/s performance (i.e. SilverStone CPS05 & ECS05)
^[2] For compatibility with the 5.25” x1 device and the supported thickness of various liquid cooling radiator sizes, please refer to the user manual.
^[3] Requires the separate purchase of a power extension cord.
