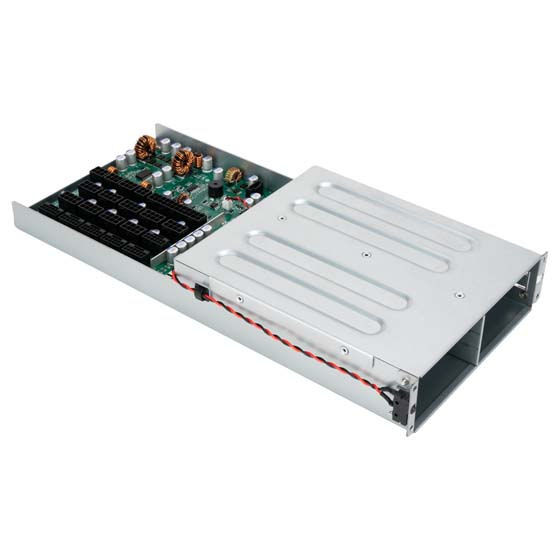

Silverstone SST-CPB01 1U 1+1 Redundant CRPS Fully Modular Power Distribution Board

Price:

$399.00

MPN:

SST-CPB01

Brand:

SILVERSTONE

UPC:

844761029999

Availability: Ships in 2 business days

Shipping:

Calculated at checkout

Add to Wishlist

Product Description

Support up to 2400W PDB Design to fit for 2 vertical CRPS power supply to install on the chassis.
Mylar insulation included that to prevent the PDB board shortcut
Using an Amphenol-manufactured card edge connector with 3-beam contact design to ensure stable power output.
Perfectly fit for GM2000C-TFU and GM2400C-TFU CRPS PSU
Full modular design with all black flat cable included.
Support up to 6 pcs of 12V-2x6 connector to allow user could connect with latest Nvidia/AMD graphic cards.
PDB followed Fire Resistant (UL 94V-0) standard
The PDB is designed with a PMBus connector to enable administrators to conveniently monitor and read power status signals.
Multiple protection circuitry

Product No.

SST-CPB01

Color

Silver

Combined +3.3V & +5V

150W

Support total output power

<=2400W

Input Voltage

Min:11.71V
Nom:12.2V
Max:12.69V

Input Connector

50Pin(25Pair) 90 degree connector

Output Current

Voltage	+3.3V	+5V	+12V	-12V	+5Vsb
Max Current	25A	22A	200A	0.3A	3A

Operating temperature

0℃ to 50℃

Shipping and Storage

-40℃ to 70℃

Protection

Over Current Protection
Over Voltage Protection

Connectors

1 x 24 / 20-Pin motherboard connector
3 x 8-Pin EPS / ATX 12V connectors
10 x 8 / 6-Pin PCIe connectors
6 x 12V-2x6 Connector
8 x SATA connectors
3 x 4-Pin Peripheral connectors
1 x 5-Pin PMBus connector

Dimension

PDB Dimension:151mm(W) X 160mm(D)
PDB with Cage Dimension:169.8mm(W) x 45.2mm(H) X 353mm(D)(Included bracket)
PDB with Cage Dimension:153.8mm(W) x 45.2mm(H) X 353mm(D)(Not included bracket)

Other

• The CPB01 does not include PSU; it only comes with the cage, power distribution board, and cables.
• Please ensure that the CPB01’s mounting holes are compatible with your chassis mounting positions.
• CPB01 is designed with a PDB and cage structure. During installation please avoid contact with electronic components on the PDB to prevent damage or malfunction.
• On the CPB01 PDB board when powered on a solid red LED indicates normal operation of the power supply and PDB. If the red LED blinks it indicates a PDB abnormal condition (the red LED will also blink when only one power supply is installed). Please refer to the LED indication definitions in the specification and the specification of your CRPS power supply for details.
