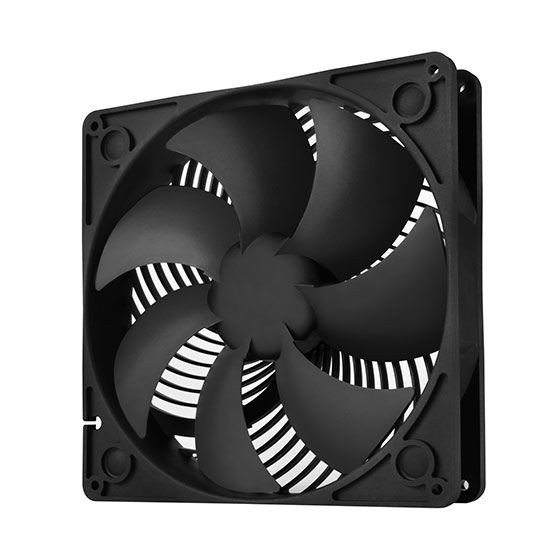

Silverstone SST-AP183 180mm Air Channel Fan

Price:
 $40.99
MPN:
 SST-AP183
Brand:
Condition:
 NEW
Availability: Ships in 2 business days
.
Shipping:
 Calculated at checkout


Add to Wishlist

Click the button below to add the Silverstone SST-AP183 180mm Air Channel Fan to your wish list.

SHARE
Pin It

Product Description

￭ Industry leading air channeling fan

￭ Wide fan blade design for high air pressure and optimal system cooling performance

￭ Effective targeted airflow with integrated Air Penetrator grille

￭ Wide 400rpm ~ 1,500rpm speed range via PWM control

￭ Low power consumption

￭ Dual ball bearing for long lifetime



Model No. SST-AP183
Color Black
Bearing Dual ball bearing
Connectors 4pin PWM
Rated Voltage 12V DC
Start Voltage 8V DC
Rated Current 0.3A
Rated Power 3.6W
Speed 400 ~ 1,500rpm
Airflow 24.49CFM (400rpm) / 140.13 CCFM (1,500rpm)
Effective Airflow Range 0.3m ~ 3.5m
Static Pressure 0.24mmH2O (400rpm) ~ 3.17mmH2O (1,500rpm)
Air speed at fan edge 0.7m/s ~ 3.7m/s
Noise Level 18 dBA (400rpm) ~ 37dBA (1,500rpm)
Life Time 70,000 hours
Diameter 180mm
Dimension 180mm (W) x 32mm (H) x 180mm (L)
7.09" (W) x 1.26" (H) x 7.09" (L)
