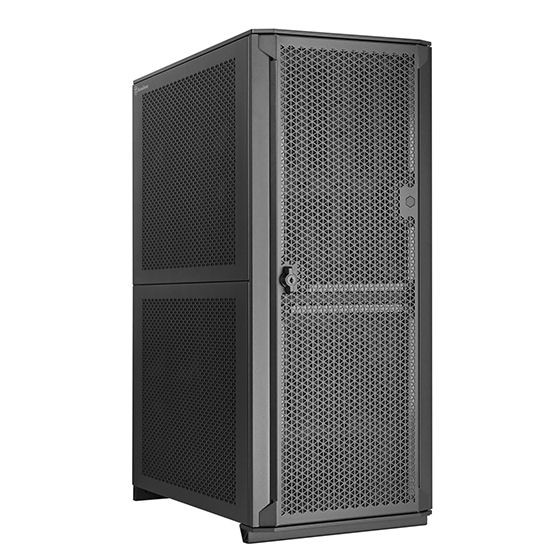

Silverstone SST-ALD1B ALTA D1 Modular Flexible Workstation Chassis

Price:

$799.00

MPN:

SST-ALD1B

Brand:

SILVERSTONE

UPC:

844761027896

Condition:

NEW

Availability: Ships in 2 business days

Shipping:

Calculated at checkout

Add to Wishlist

Product Description

Compatible with 12" x 13" SSI-EEB and 15.12" x 13.2" specialized form factor motherboards
Multiple modules for maximizing expansion, performance, and flexibility
Supports up to 11 PCI slots for multi-workstation GPU capability, with a total graphics card clearance of 407mm
Dual PSU support
Supports a maximum of three 360mm radiators
Crafted from high-grade steel, provides exceptional durability and robustness
Front I/O includes 1 x USB Type-C, 2 x USB 3.0

Model No.

SST-ALD1B

Material

Steel, aluminum

Motherboard

Specialized form factor (15.12" x 13.2"), SSI-EEB (12" x 13"), SSI-CEB (12" x 10.5"), Extended ATX (12" x 13"), XL-ATX(13.5" x 10.3"), ATX (12" x 9.6"), Micro-ATX (9.6" x 9.6"), Mini-ITX (6.7" x 6.7")

Drive bay

External

(5.25" x 2 / 3.5" x 2 / 2.5" x 4) x 2 ^[1]

Cooling system

Front

180mm x 2 + 160mm x 1 or 140mm x 1 / 80mm x 8 + 140mm x 1
(180mm x 2 black fans included)

Rear

120mm x 1 / 140mm x 1 (140mm x 1 black fan included)

Bottom

120mm x 3 (without modular kit occupied)

Side

Left side : 120mm x 6 / 140mm x 4 ^[2]
Right side : 120mm x 3 / 140mm x 2 ^[2]

Radiator support

Rear

120mm

Bottom

120mm / 240mm / 360mm (without modular kit occupied)

Side

Left side : (120mm / 140mm / 240mm / 280mm / 360mm) x 2 ^[2]
Right side : 120mm / 140mm / 240mm / 280mm / 360mm ^[2]

Limitation of CPU cooler

191mm

Expansion slot

11 (without modular kit occupied)
7 (with modular kit occupied)

Limitation of expansion card

Length : 407mm (without installing front mounted fans)
Width : 186mm (with GPU brace installed) , 194mm (without GPU brace installed)

Power supply

Standard PS2 (ATX) + Standard PS2 (ATX)

Front I/O port

USB Type-C x 1
USB 3.0 x 2

Dimension

265mm (W), x 651mm (H), x 457mm (D), 78.84 liters
10.43" (W), x 25.63" (H), x 18" (D), 78.84 liters

Net weight

21.3 kg

Remark

^[1] Two drive cages are included, with a maximum of six cages that can be mounted inside the chassis. Additional cages can be purchased separately.
^[2] Mounted on a fan/radiator bracket, with one bracket pre-installed on the left and right side of the chassis respectively, each bracket supports either 120mm x 3 or 140mm x 2 fans. The bracket on the right side can be removed to be mounted on the left side as per requirement. Additional brackets can be purchased separately
