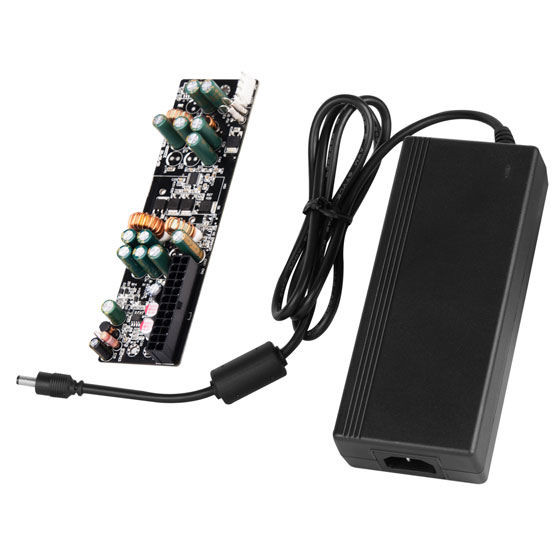

Silverstone SST-AD120-DC 120W AC to DC Adapter w/ 120W DC to DC Board

Price:

$105.00

MPN:

SST-AD120-DC

Brand:

SILVERSTONE

Availability: Ships in 2 business days

Shipping:

Calculated at checkout

Add to Wishlist

Product Description

￭ Maximum Output of 120W

￭ 120W DC-DC power board with 120W 12V efficiency level VI AC-DC Power Adapter & power cord

￭ Mylar insulation design, easy to install

￭ Black wire design

￭ Built-in multiple protection circuitry for maximum protection during operation

168mm (W) x 71mm (H) x 37.5mm (D)
6.61" (W) x 2.8" (H) x 1.48" (D)

AC adapter
Wattage	120W
Output	12V DC
Input Voltage	100 ~ 240V
Input Frequency Range	47 ~ 63Hz
Max. Output Current	10A
Operating temperature	0°C ~ 40°C
Protection	Over voltage protection Over current protection Short circuit protection
Dimension

Product No.

SST-AD120-DC

DC to DC board

Max. DC Output

120W

Color

Black

Load Range

	+3.3V	+5V	+12V	+5VSB	-12V
Max.(Amps)	12A	12A	10A	3.0A	0.15A
Range (%)	±5%	±5%	±5%	±5%	±10%
Line Reg.(%)	±1%	±1%	±1%	±1%	±1%
Ripple(mVp-p)	50mA	50mA	120mV	50mV	120mV

Combined +3.3V & +5V

95W

Combined +12V

120W

Operating temperature

0°C ~ 40°C

Protection

Over voltage protection
Over current protection
Under voltage protection
Short circuit protection

Connectors

1 x 24-Pin motherboard connector (200mm)
1 x 8 / 4-Pin EPS / ATX 12V connector (250mm)
3 x SATA connector (300mm / 100mm / 100mm）
1 x 4-Pin Peripheral connector (200mm)

Dimension

160mm (W) x 25mm (H) x 45mm (D)
6.3" (W) x 0.98" (H) x 1.77" (D)
