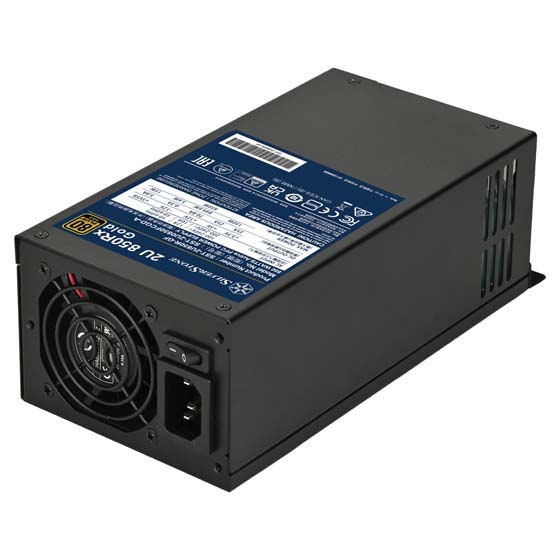

Silverstone SST-2U850R-GF 2U 850Rx Gold 80 PLUS Gold 850W 2U Power Supply

Price:
 $309.99
MPN:
 SST-2U850R-GF
Brand:
UPC:
 844761029487
Condition:
 NEW
Availability: Ships in 2 business days
.
Shipping:
 Calculated at checkout


Add to Wishlist

Click the button below to add the Silverstone SST-2U850R-GF 2U 850Rx Gold 80 PLUS Gold 850W 2U Power Supply to your wish list.

SHARE
Pin It

Product Description

  • Support standard 2U Single form factor
  • Supports 12V-2x6 PCIe connector and compatible ATX 3.1 and PCIe Gen 5 standard
  • Black flat cable design
  • Main Japanese electrolytic capacitors
  • Silent running 60mm dual ball bearing fan
  • High efficiency with 80PLUS Gold certification
  • 24/7 continuous power output with 50℃ operating temperature
Color
Black (lead-free paint)
Max. DC Output
850W
Load Range
Output +3.3V +5V +12V +5VSB -12V
Max.(Amps) 25A 25A 70.80A 3.0A 0.3A
Min.(Amps) 0A 0A 0A 0A 0A
Range (%) ±5% ±5% ±5% ±5% ±10%
Line Reg.(%) ±1% ±1% ±1% ±1% ±1%
Ripple(mVp-p) 50mV 50mV 120mV 50mV 120mV
Max output(Watt) 150W 150W 850W 15W 3.6W
Combined +3.3V & +5V
150W
Combined +12V
850W
Input Voltage
90 ~ 264 Vrms
Input Frequency Range
47Hz ~ 63Hz
PFC
Active PFC（PF>0.9 at full load）
Efficiency
87% ~ 90% (at 20% ~ 100% loading)
MTBF
100,000 hours
Operating temperature
0°C ~ 50°C
Protection
Over power protection
Over current protection
Over voltage protection
Short circuit protection
Under voltage protection
Over Temperature protection
Connectors
1 x 24/20-Pin motherboard connector
2 x 8 / 4-Pin EPS / ATX 12V connector
3 x 8 / 6-Pin PCIe connectors
1 x 12V-2x6 connector
6 x SATA connector
6 x 4-Pin Peripheral connector
Cooling System
Single 60mm dual ball bearing fan
Noise Level
18 dBA min.
Certification
80 PLUS Gold
Form factor
2U Single
Dimension
100mm (W) x 70mm (H) x 190mm (D)
without bracket
3.46" (W) x 2.76" (H) x 7.48" (D)

Other Details

MPN:
SST-2U850R-GF
