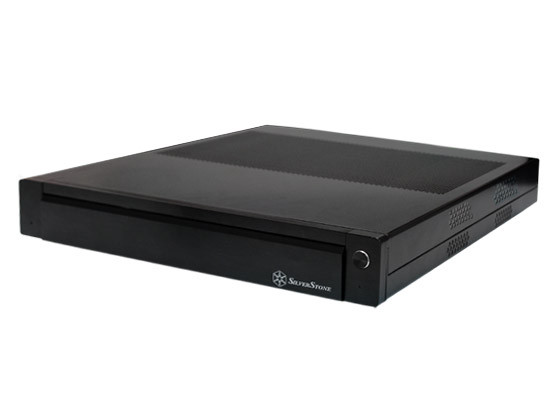

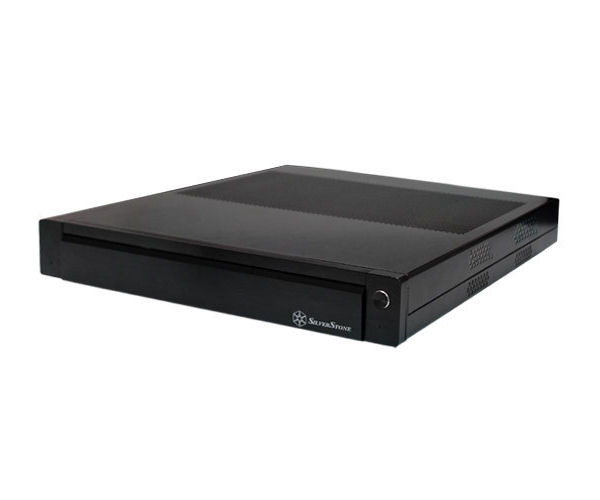

Silverstone LC19B-R Lascala Series Ultra Slim HTPC Case

Price:
 $249.99
MPN:
 LC19B-R
Brand:
Condition:
 NEW
Availability: Ships in 2 business days
Ships in 2 business days
Shipping:
 Calculated at checkout


Click the button below to add the Silverstone LC19B-R Lascala Series Ultra Slim HTPC Case to your wish list.

SHARE

Product Description

Introduction
With an increasing number of mobile CPUs moving to desktop systems, SilverStone engineers once again saw a great opportunity to create a case that would truly take advantage of this movement. The result is an amazingly slim 68mm (2.68 inches) tall enclosure that is still capable of accommodating a Micro-ATX motherboard and widely available storage components. For people who prefer to build a system that is easy on the eyes (and occasionally, out of sight) with power to do almost anything, the LC19 is perfect.



Special Feature
Ultra-slim profile at 68mm tall
Sturdy steel chassis suitable for silent operation
Understated styling for any settings
Fanless PSU included
Full size 3.5 hard drive compatible
Available slim optical drive and expansion slot



Model No.



SST-LC19B-R (black + card reader)


 Material

Aluminum front panel, 1.0mm SECC body (LC19R:0.8mm)

 Motherboard

MoDT Micro ATX, Mini-ITX, DTX

 Multimedia

--

 Drive Bay

 External Slim optical x 1
None
 Internal 3.5" x 1 or 2.5" x 1 (vibration dampening)( LC19R only )

 Cooling System

 Front --
 Rear 1 x 50mm exhaust fan, 2200rpm, 19dBA ( LC19R only )
 Side 3 x 50mm fan slots ( LC19R only )
 Top Oversized CPU/NB vents
 Bottom --
 Internal --

 Expansion Slot

 1 (includes 1 x PCI riser card and 1 x PCI-Ex16 riser card) for LC19R

 Front I/O Port

USB2.0 x 2
IEEE1394 x 1
audio x 1
MIC x 1
52-in-1 card reader (LC19R only)

 Power Supply

Fanless 120W DC/DC board & AC adapter

 Operating system support

--

 Expansion Card

--

 Limitation of CPU cooler

--

 Limitation of PSU

--

 Net Weight

3.9 kg

 Dimension

390 mm (W) x 68 mm (H) x 348 mm (D)

 Extra

Slim optical drive IDE adapter

Specifications of Power Supply
 Max.DC Output
120W
Load Range

+3.3V
+5V
+12V
+5VSB
-12V
-5V
 Max.(Amps)
7A
7A
8A
2A
0.2A
/
 Peak(Amps)
/
/
/
/
/
/
 Min.(Amps)
0A
0A
0A
0A
0A
/
 Range(%)
+/-5%
+/-5%
+/-5%
+/-5%
+/-5%
/



Remark

–MoDT motherboard recommended.
–CPU cooler cannot exceed 37mm in height.
–Card reader support
Smart Media -
SM, SSFDC, SM Ram, XD
Compact Flash -
CF I, CF II, Hitachi Microdrive, IBM Microdrive, Magicstor, HS-CF, Extreme CF, Extreme III CF, Ultra CF, Ultra II CF, Ultra-X CF
Secure Digital-
SD, HS SD, Extreme SD, Extreme III SD, Ultra SD, Ultra II SD, Ultra II SD plus, SD Elite Pro, *Mini-SD, *Micro SD, *T Flash, *C-Flash, SDHC card
Multimedia -
MMCI, MMCII, HS MMC, DV-RS-MMC, *MMC Mobile, *RS MMC, *RS MMC Mobile, *HS RS MMC
Memodery Stick -
MS, MS Magic Gate, MS Pro, MS Pro(MG), Extreme MS Pro, Extreme III MS Pro, HS MS Pro, HS MS MG Pro, MS Select, MS Pro Ultra II, *MS Duo, *MS Duo(MG), *MS Pro Duo, *MS Pro Duo(MG), *HS MS Pro Duo, * HS MS MG Pro Duo, *MS Pro Duo Ultra II, * MS Rom
