Introduction

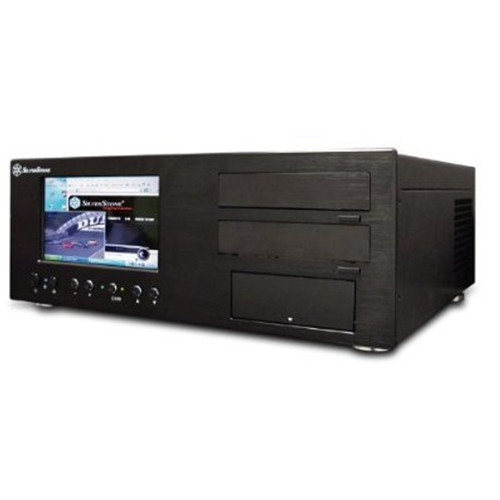

When SilverStone engineers set out to create an HTPC enclosure with an integrated touch screen, they quickly realized the need to do more than just dropping a screen in front of an ordinary case. Users of cases at this caliber will demand compatibility with the best hardware components in the world. Therefore, an all new aluminum chassis was designed from the ground up to meet these demands. Borrowing from the superb airflow layout first pioneered in the LC16M, the LC18 can house any CPU with minimal noise thanks to its free-flowing dual 80mm exhausts and large intake vents. An innovative hard drive bracket was also created exclusively for LC18 to ensure top of the line graphics cards and capture cards can be used with little or no sacrifice in hard drive space. The precisely calculated distances between hard drives will ensure safe running either passively or actively (by mounting bottom feeding intake fans) for any hard drives installed. This exceptionally powerful chassis is then used to hold a HDTV-like 7h touch screen with brilliant wide-aspect ratio resolution for clear text and undistorted images. For the most creative users who demand the best, the LC18 is a perfect complement for either home or work.
Special Feature
Integrated 7h touch screen panel
Premium, all aluminum construction
Superb fit and finish
Exceptional storage space
Next generation cooling layout
Rackmount ready
@@START_COMMENT@@END_COMMENT
Model No.
|
|
|
SST-LC18B-V64 (black, 64-bit & 32-bit compatible) |
|
Material
|
Aluminum front panel, 1.5mm aluminum body |
Motherboard
|
Standard ATX, Micro ATX |
Multimedia
|
Integrated 7" touchscreen |
Resolution
|
Native resolution: 800 x 480 Supported resolution: 640 x 480 ~ 1600 x 1024> |
Drive Bay
|
External |
5.25" x 2 |
3.5" x 1 |
Internal |
3.5" x 5 (vibration dampening) |
Cooling System
|
Front |
-- |
Rear |
2 x 80mm exhaust fan, 2050rpm, 21dBA |
Side |
Dedicated CPU & PSU vents |
Top |
-- |
Bottom |
2 x 80mm fan slots |
Internal |
-- |
Expansion Slot
|
7
|
Front I/O Port
|
Optional FP32 with USB2.0 x 4 IEEE1394 x 1 audio x 1 MIC x 1 (sold separately) |
Power Supply
|
Not included |
Operating system support
|
-- |
Expansion Card
|
-- |
Limitation of CPU cooler
|
-- |
Limitation of VGA card
|
-- |
Limitation of PSU
|
-- |
Net Weight
|
6.5 kg |
Dimension
|
425 mm (W) x 170 mm (H) x 443 mm (D) |
Extra
|
-- |
@@START_COMMENT For LC19 , ML02 insert date:960711 @@END_COMMENT
Remark |
|
–LCD resolution support from 640 x 480 up to 1600 x 1024. |
