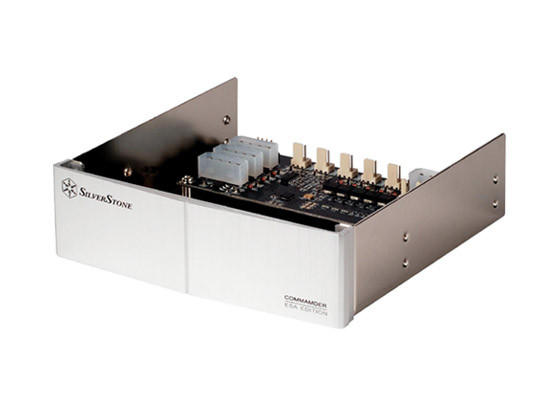

Silverstone CMD01S-ESA Commander Thermal Controller, Silver

Price:
 $19.99
MPN:
 CMD01S-ESA
Brand:
UPC:
 844761005078
Condition:
 NEW
Availability: Ships in 2 business days
Ships in 2 business days
Shipping:
 Calculated at checkout


Click the button below to add the Silverstone CMD01S-ESA Commander Thermal Controller, Silver to your wish list.

SHARE

Product Description

Introduction
  To enable more users to enjoy the ability to monitor and control their system’s thermal performance; SilverStone created a module called Commander 01 ESA. When connected with an ESA certified motherboard, it can provide full system monitoring and thermal control for support up to 5 fans, 3 lamps (optional) and 4 thermal sensors. Operating under NVIDIA’s control panel software supporting ESA, an user no longer needs to go through complicated BIOS setup to make system performance adjustments. For enthusiasts, it is the best choice to have precision control of their system parameters.

  Special Feature
  Enable ESA support for full system thermal management
Support up to 5 fans, 3 lamps (optional), and 4 thermal sensors
Classic SilverStone styling and finish
Requires ESA certified motherboard



Model
  SST-CMD01B-ESA (Black)
SST-CMD01S-ESA (Silver)
 Color
  Black, Silver
 Material
  Aluminum front panel, steel body
 Power requirement
  +12V
 Max fan power
  5 channels, 0.5A per channel
 Operating system support
  Windows XP, XP-64, Vista, Vista-64
 Application
  5.25” drive bay, works with ESA motherboard
 Connectors
  3 x 4pin peripheral connectors (300mm)
1 x USB connector (600mm)
4 x thermal sensors (600mm)
 Interface
  USB 2.0
 Fan control function
  Adjustable speed or thermal control by NVIDIA control panel
 Max lamp power
  3 channels, 0.8A per channel
 Lamp control function
  On/off function control by NVIDIA control panel
 Thermal sensor & range
  4 sensors, 0°C ~ 90°C
 Controller Board Dimension
  130mm (W) x 35mm (H) x 55mm (D)
 Dimension
  158mm (W) x 42mm (H) x 145mm (D)

Other Details

MPN:
CMD01S-ESA
