nVIDIA®
SLITM
Ready
|

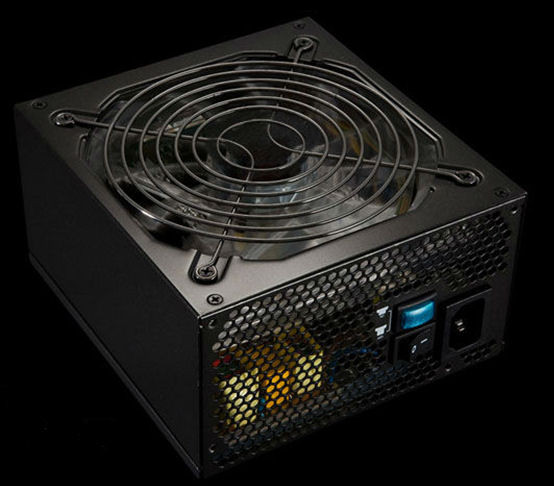

140mm
LED fan
(LED on/off)
|
|
|
AMD ATI® CrossFireXTM
Ready
|
- 1200-Watts Output Power
- Low noise operation: automatic fan speed control with built-in thermostat
- Silent 140mm LED fan (with LED light on/off switch)
- Active PFC for reduced harmonic distortion
- Low Heat Dissipation based on a High Efficiency Design
- Over 80% Efficiency
- Full range AC input with automatic AC input voltage selection - 100- 240V AC
- RoHS Compliant Lead-free - made with all hazardous-free components
- ATI Radeon® Crossfire, CrossFireX, FirePro Ready
- nVidia® SLITM Ready
- Support Intel Xeon, Pentium D, Core2 Duo, Quad Core, Core i7, Intel X , Extreme Edition, and AMD 64 X2 based systems
- Safe to Operate, Meets and exceed the following safety agency standard: UL, cUL, FCC, CE, CB
- 6x SATA Power Connectors and 4x PCI-Express (6+2pin) Power Connectors
- Complete 6*Star electrical protection features built-in
- Compliance with ATX 12V 2.3
- Dual 12V Output Circuits to provide Added System Stability
- Full Circuit protection (OCP/UVP/OVP/SCP/OLP)
- Connectors Summary:
(1) 20+4 pin ATX Main Connector(1) 12V (4pin/8pin) power connector(1) CPU 8pin EPS12V Power Connector(1) CPU 4pin ATX12V Power Connector(4) PCI-Express 6+2 pin Power Connectors(2) Floppy Power Connectors
(6) 4-pin Molex Peripheral Power Connector
Patented EZ-Extract (squeeze-and-pull) Design
|
|
(6) Right-angle SATA Power Connectors
Even the tightest spot drive can be reached & connected easily
|
|
AC INPUT : 100-240V Full Range with Automatic Switching:
AC Voltage Selection Switch for 115 or 230v is no longer needed as this unit supports all AC input voltage automatically.
Frequency: 50-60Hz
Maximum Input Current: 15A
Voltage
|
+12V1
|
+12V2
|
+5V
|
+3.3V
|
-12V
|
+5Vsb
|
Min |
1.0A |
1.0A |
0.5A |
0.8A |
0.0A |
0.1A |
Max
|
42A
|
42A |
47A
|
40A
|
0.8A
|
6A
|
Regulation
|
+ 5%
|
+ 5%
|
+ 5%
|
+ 5%
|
+ 10%
|
+ 5%
|
Ripple & Noise
|
200mV
|
200mV
|
100mV
|
100mV
|
200mV
|
100mV
|
Total Power
|
1200W
|
Operating temperature range: 10 - 45 degree C (50 - 113 degree F)
Operating relative humidity range: 20 to 90%
Energy-efficient: typical 78%MTBF Life Expectancy of this model: 100,000 hours* (11 years & 2 months)
* Excludes the life of the fan which may vary depending on operating environment
Power Good Signal |
100~500ms |
Hold Up Time |
>16 ms |
Efficiency |
80% Plus |
Dimensions: |
150x160x86mm |
Operation Temperature |
0~45 degree C |
