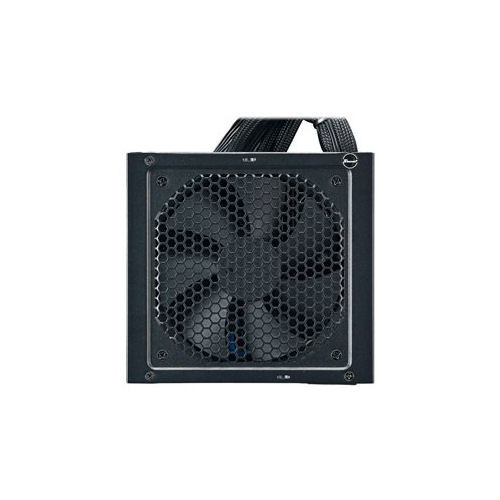

Seasonic SSR-500GB3 S12III 500W 80+ Bronze ATX 12V Power Supply

Price:
 $79.99
MPN:
 SSR-500GB3
Brand:
Availability: Ships in 2 business days
.
Shipping:
 Calculated at checkout


Add to Wishlist

Click the button below to add the Seasonic SSR-500GB3 S12III 500W 80+ Bronze ATX 12V Power Supply to your wish list.

SHARE
Pin It

Product Description

Device Type: Power supply - active Power Factor Correction (PFC) - internal
Specification Compliance: ATX12V / EPS12V
PSU Form Factor: ATX

Input Voltage: AC 100-240 V
Frequency Required: 50 - 60 Hz
Power Output Connectors Details: 1 x power 24 pin ATX with detachable 4 pin section ¦ 1 x power 8 pin +12V with detachable 4 pin section ¦ 2 x 8 pin PCI Express power with detachable 2 pin section ¦ 4 x 15 pin Serial ATA power ¦ 3 x 4 pin internal power ¦ 1 x 4 pin mini-power connector
Output Voltage: +3.3, +5, ±12 V
Power Capacity: 500 Watt
Output Current: +3.3V - 20 A ¦ +5V - 20 A ¦ +12V - 40 A ¦ -12V - 0.3 A ¦ +5VSB - 2.5 A
Efficiency: 87%
Power Factor (PF): 0.99
80 PLUS Certification: 80 PLUS Bronze

MTBF: 100,000 hours
Cooling System: 120 mm fan
Features: Overvoltage protection, overpower protection, undervoltage protection, short-circuit protection, non-modular, Seasonic S2FC fan Control, LLC resonant converter technology
Compliant Standards: TUV, C-Tick, BSMI, CB, CCC, FCC, RoHS, WEEE, GOST-R, cTUVus, Energy-Related Products (ErP) Lot 6, REACH, EAC

ENERGY STAR: Yes

Max Operating Temperature: 104 °F
    Dimensions
Width: 5.9 in
Depth: 5.5 in
Height: 3.4 in

Other Details

MPN:
SSR-500GB3
