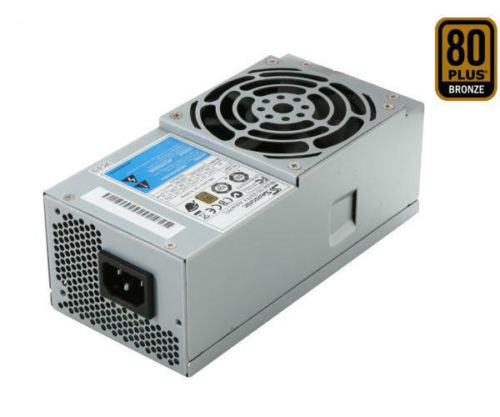

Seasonic SS-300TFX 18 CABLE Power Supply 300W TFX12V V2.3 80PLUS Active PFC

TFX12V v2.3

Maximum Power

300W

Fans

8cm Double Ball Bearing

PFC

Active

Main Connector

24Pin

SATA Power Connector

2

Haswell Support

No

Efficiency

> 82%

Energy-Efficient

80 PLUS BRONZE Certified

Over Voltage Protection

Yes

Input Frequency Range

47 - 63 Hz

MTBF

>100,000 Hours

Approvals

CUL, TUV, CB, CE, FCC, C-tick

Dimensions

6.9" x 3.3" x 2.8"

Features

Features

• Pentium 4 ready with P4 connectors
• Forward converter circuit
• High efficiency and reliability
• Low ripple & noise
• Super low noise fan control
• Short circuit protection on all outputs
• Over power protection
• 100% hi-pot test
• 100% burn in, high temperature cycled on/off
