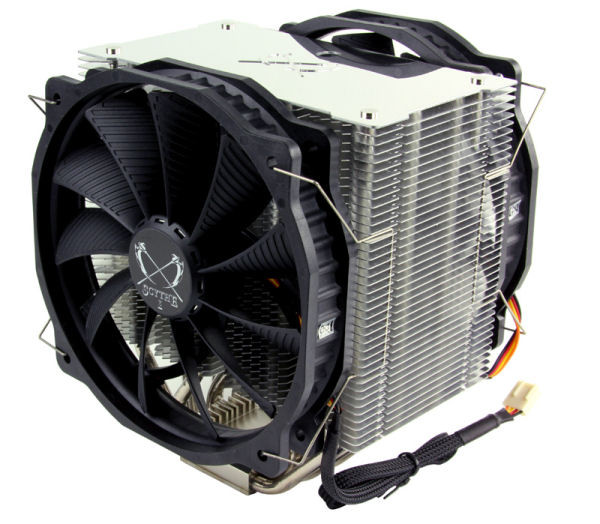

Scythe SCMGD-1000 MUGEN MAX Maximum Compatibility LGA2011/AM3/AM3+ CPU Cooler

• Model Name

MUGEN MAX

• » Model Number

SCMGD-1000

• » Intel® Compatibility

Socket LGA 775 , Socket LGA 1150 , Socket LGA 1155 , Socket LGA 1156 , Socket LGA 1366 , Socket LGA 2011 (Square ILM)

• » AMD® Compatibility

Socket AM2 , Socket AM2+ , Socket AM3 , Socket AM3+ , Socket FM1 , Socket FM2 , Socket FM2+ (NOTE: Please note that for mounting on motherboards with the AMD-Socket, the original back plate of the motherboard will be necessary. Please check prior to your purchase.

• » Overall Dimensions

145 x 86 x 161 mm / 5.71 x 3.39 x 6.34 in (w/o fan)

• » Weight

720 g / 25.40 oz (heatsink only)

• » Included Accessory

2x mounting plate (Intel), 2xmounting plate (AMD), 1x mounting bar, 4x screw for mounting plates, 8x stud nuts, 2x mounting screws, 1x spacer (socket 775), 4x spacer, 1x wrench, 4x fan clips, back plate, thermal grease, installation manual

• » Baseplate Material

Nickel-plated copper

• » Fan Model Name

GlideStream 140 PWM

• » Fan Model Number

SY1425HB12M-P

• » Fan Size

140 x 140 x 25 mm / 5.51 x 5.51 x 0.98 in

• » Noise Level

13 ~ 30.7 dBA

• » Air Flow

63.5 ~ 165m³/h / 37.37 ~ 97.18 CFM

• » Fan Speed

500 rpm (± 300) ~ 1,300 rpm (±10%) (PWM-regulated)

• » Static Pressure

0.15 ~ 1.02 mmH2O / 1.47 ~ 10.0 Pa

• » Bearing Type

Sleeve Bearing
