M.A.P.S
The new Kotetsu also draws on the highly proven M.A.P.S. already having shown excellent results with the Mugen 3. Thanks to the optimized arrangement of the fins, pass-through airflow inside the heatsink is ramped up, leading to even better cooling performance.
Newly Developed Mounting System
Another new feature can be seen is the Kotetsu's new mounting system. Based on the over-the-years experience of CPU cooler mounting sytems and Scythe expertise, the kotetsu mounting was designed with the keywords "simplicity" and "reliability" in mind.
GlideStream 120 PWM
The supplied new Glide Stream 120 PWM fan with its' unique blade design is automatically controlled by the motherboard's PWM function, the temperature adjusts to the CPU.
Model Name:

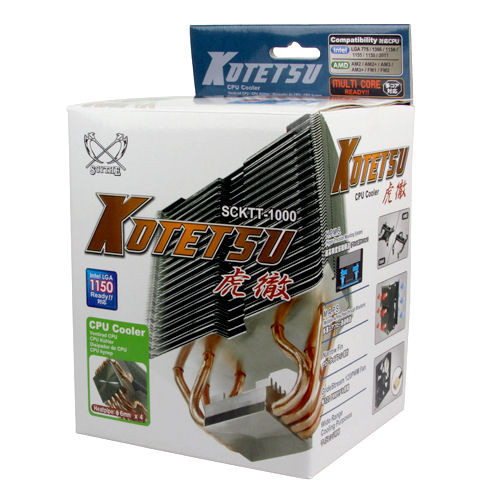

Kotetsu CPU Cooler
Model Number.:
SCKTT-1000
Compatibility:
Intel®:
Socket LGA775
Socket LGA1150
Socket LGA1155
Socket LGA1156
Socket LGA1366
Socket LGA2011 (Square ILM)
AMD®:
Socket AM2
Socket AM2+
Socket AM3
Socket AM3+
Socket FM1
Socket FM2
Socket FM2+
Please note that for mounting on motherboards with the AMD-Socket, the original back plate of the motherboard will be necessary. Please confirm if it is on hand prior to your purchase.
Dimensions:
130 x 58 x 160 mm / 5.12 x 2.28 x 6.3 in (WxDXH)
Weight:
480 g / 16.93 oz (Heatsink only)
Accessory:
Mounting plate x2 (Intel), mounting plate x2 (AMD), mounting bar x1, screws for clips x4, mainboard screws x8, mounting screws x2, back plate spacer (Socket 775) x1, washers x4, wrench x1, fan clips x2, thermal grease, backplate, installation manual
Baseplate Material:
Nickel-plated Copper (more Info)
Fan Specifications
Model Name:
GlideStream 120 PWM
Model-No.:
SY1225HB12M-P
Fan Size:
120 x 120 x 25 mm / 4.72 x 4.72 x 0.98 mm
Noise Level:
5.3 ~ 28.0 dBA
Air Flow:
20.7 ~ 79 CFM
Fan Speed:
400 rpm (±200) ~ 1400 rpm (±10%)
Voltage / Current:
DC 12V / 0,09A
Static Pressure:
1,18 ~ 15.3 Pa / 0,12 ~ 1.56 mmH²O
Bearing Type:
Sleeve Bearing
