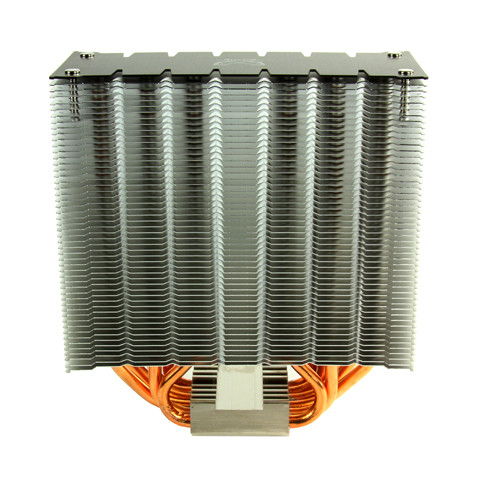

Scythe SCASR-1000 ASHURA LGA2011/1155/1156 Asymmetrical CPU Cooler

Asymmetrical Design
The asymmetrical layout of the base plate allows the Ashura to be mounted in various clearances to the memory modules, making the usage of memory modules with tall heatsinks possible. Compatibility to various sockets and motherboards is increased, and user-friendly, simple installation of the Ashura is realized.




Twin-Fan Installation
When developing the Ashura, the possibility for mounting a second fan was incorporated. The necessary spare pair of fan clips is therefore part of the accessory list. With a second fan helping, cooling performance can be further enhanced by applying the push & pull principal (The extra fan has to be purchased separately).

Newly Developed Mounting System
Another new feature can be seen is the Ashura's new mounting system. Based on the over-the-years experience of CPU cooler mounting sytems and Scythe expertise, the Ashura mounting was designed with the keywords "simplicity" and "reliability" in mind.




GlideStream 140 PWM
The 140mm GlideStream PWM covers all areas of cooling. Able to work both very quietly as well as with max cooling performance, it forms a perfect team with the new Ashura CPU cooler.

Model Number:
SCASR-1000

Compatibility:
Intel®:

Socket LGA2011
Socket T / LGA775
Socket LGA1150
Socket LGA1155
Socket LGA1156
Socket LGA1366

AMD®:

Socket AM2
Socket AM2+
Socket AM3
Socket AM3+
Socket FM1
Socket FM2
Socket FM2+

Dimensions:
145 x 65 x 161 mm / 5.71 x 2.56 x 6.34 inch

Weight:
750 g / 26.46 oz (excl. fan)

Accessory:
Mounting plate x2 (Intel), mounting plate x2 (AMD), mounting bar x1, screws for clips x4, mainboard screws x8, mounting screws x2, back plate spacer (Socket 775) x1, washers x4, wrench x1, fan clips x4, thermal grease, backplate, installation manual

Base Plate Material:
Nickel plated copper (more Info)

Fan Secifications

Model Name:
GlideStream 140 PWM (adapted Model)

Model-No.:
SY1425HB12M-P

Fan Dimensions:
140 x 140 x 25 mm / 5.51 x 5.51 x 0.98 inch

Noise Level:
13 - 30,7 dBA

Air Flow:
63 - 165 m³/h / 37.37 bis 97.18 CFM

Fan Speed:
500 ± 300 rpm to 1300 rpm ± 10%  (PWM-regulated)

Static Pressure:
1.47 ¢¦ 10.0 Pa / 0.15 ¢¦ 1.02 mmH²O
