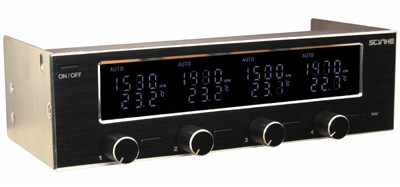

Scythe KS01-BK Kaze Server 5.25inch Bay Fan Controller

Price:

$49.00

MPN:

KS01-BK

Brand:

SCYTHE

Condition:

NEW

Availability: Ships in 2 business days

Ships in 2 business days

Shipping:

Calculated at checkout

Sorry but this item is currently unavailable.

Please check back at a later stage.

Add to Wishlist

Product Description

High-quality materials were used when producing the Kaze Server. The front consists of brushed aluminum and accentuates the illuminated LCD display in an optimal way. Only the highest quality materials are used: Stylish brushed aluminum coupled with the illuminated blue display makes the Scythe Kaze server a premium fan controller.

The Scythe Kaze Server 5.25" 4 Channel Fan Controller can be set to manual, auto or semi-auto for total control. Manual control gives you total control when you want to change it. Auto can be used to preset temperature thresholds that will trigger fan speed increases or decreases. You can mix the two with semi-auto and enjoy the best of both. You can turn the display off while still having the control active and functioning which is perfect for entertainment HTPC chassis and the like.

Overall Dimensions:	148.5 x 42.5 x 63mm 5.85 x 1.67 x 2.48in
Display Dimensions:	114 x 20mm 4.49 x 0.79in
DC Output:	5V and 12V
Output Ampere:	MAX. 1A per Channel
Temperature Range:
Fan Speed Range:	0 ~100 ¡ÆC / 32 - 199.9 ¡ÆF

Temperature monitoring

With the Kaze Server, four fans can be controlled independently, and four

temperatures (in either C¡Æ or F¡Æ) can be monitored.

An integrated acoustic alarm function (which can be deactivated by a jumper) warns the user from overheating and failure of a fan.

Fan control

In addition to manually control the fan speed on four knobs, the Kaze Server Fan controller allows a fully automated and a semi-automatic operation mode.

AUTO mode

Kaze Server switches off the fan, when the real temperature is much lower than the self-defined temperature.

SEMI mode

In addition to AUTO mode, a minimal rpm of the fan can be defined together with the self-defined temperature.

Wide range of fan controller:

The fan voltage can be independently controlled from 3.7 - 12 V, in addition, the fan can be switched off completely which allows the user to choose between high and ultra-cooling operation.

Contents

Power Cable x 1
Thermal Sensors x 6
Fan Cable x 4
Adhesive Tape x 6
Unit Mounting Screws x 4
