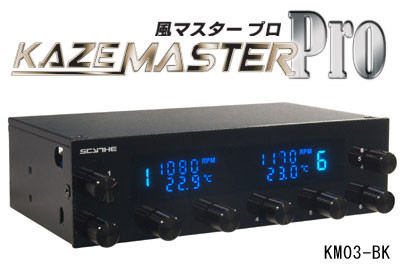

Scythe KM03-BK Kaze Master Pro 6ch Fan Controller

Width 148.5 ~ height 42 ~ Depth 83mm (body)
Width 100 ~ height 19mm (LCD Display Unit)

Input: DC5V and DC12V (supplied from Power Supply)

Output: 3.7V ~ 12V (} 10%)

Fan Control: 6 channels

Temperature Sensor: 6 channels

LCD Display :  temperature & fan speeds

Output current: MAX 1A

Temperature range: 0 to 100 degrees (Celsius) / 32 to 199.9 (F)

Speed range: 0 ~ 9990rpm (30rpm increments)

Measurement frequency: every 2 seconds

Weight: 325g

5.25" bay mount

Wide Range Voltage Adjustment

VFD Panel

Error Detecting Alarm
