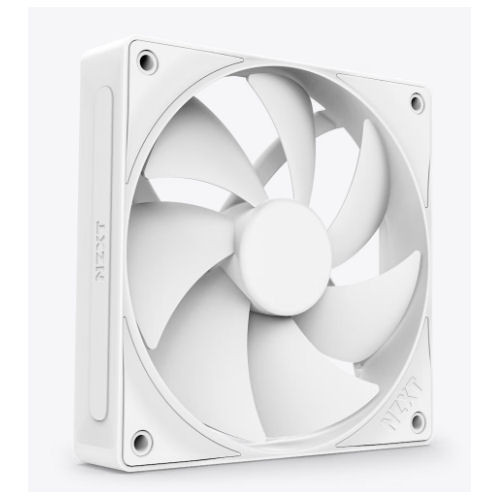

NZXT Static Pressure Fans deliver strong airflow in tight spaces, like radiators and heatsinks. With optimized blades, chamfered frame, and fluid dynamic bearings, they offer high-performance, low-noise cooling.
- Seven thick blades are designed for high static pressure so air can be pushed through tight spaces, ideal for mounting on radiators and heatsinks.
- Minimal gap between blade edges and frame maximizes the spinning area for higher airflow volume and efficiency.
- Chamfered frame design directs air in a powerful concentrated flow pattern, traveling far into the case to cool vital components.
- Fluid dynamic bearings provide unwavering stability, low-noise operation, and a 60,000-hour lifespan.
- PWM control dynamically adjusts fan speed for higher output or lower noise based on system temperatures for efficient cooling.
- Sturdy frame with rubberized corners absorbs vibrations for low-noise operation, even at high speeds.*
-
Height:120 mm
-
Width:120 mm
-
Depth:25 mm
Fan Specs
-
Speed:500-2,000 ± 200 RPM
-
Airflow:73.47 CFM
-
Static Pressure:4.50 mm-H₂O
-
Noise:30.0 dBA
-
Power Consumption:12 V DC, 0.18 A, 2.16 W
-
Bearing:Fluid Dynamic Bearing
-
Connector:4-pin PWM
-
Cable Length:1 x 600 mm
-
Material:Plastic, Rubber, PCB
-
Life:60,000 Hours
