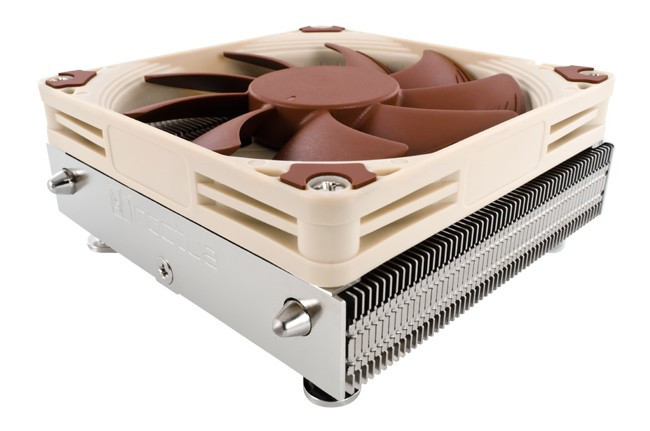

Noctua NH-L9i 37mm Low Profile LGA1150/LGA1155/LGA1156 CPU Cooler

Price:
 $59.00
MPN:
 NH-L9I
Brand:
Condition:
 NEW
Availability: Ships in 2 business days
Ships in 2 business days
Shipping:
 Calculated at checkout


Add to Wishlist

Click the button below to add the Noctua NH-L9i 37mm Low Profile LGA1150/LGA1155/LGA1156 CPU Cooler to your wish list.

SHARE
Pin It

Product Description

The NH-L9i is a premium quality quiet CPU cooler for Intel LGA115x based HTPCs and Small Form Factor systems. At a super-low profile of only 37mm, the NH-L9i is ideal for extremely slim cases and due to its 95x95mm footprint, it provides full compatibility with tall RAM modules and VGA cards on mini-ITX mainboards. The custom designed SecuFirm2™ mounting system for LGA115x makes installation a child’s play and thanks to the highly optimised NF-A9x14premium fan that supports fully automatic speed control via PWM, the NH-L9i runs remarkably quiet. Topped off with Noctua’s renowned NT-H1 thermal compound, the NH-L9i fuses everything users have come to expect from Noctua’s larger coolers into a super-compact package for slim HTPC systems
Socket compatibility   LGA1150, LGA1155, LGA1156



Height (without fan)   23 mm



Width (without fan)   95 mm



Depth (without fan)   95 mm



Height (with fan)   37 mm



Width (with fan)   95 mm



Depth (with fan)   95 mm



Weight (without fan)   345 g



Weight (with fan)   420 g



Material   Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating



Fan compatibility   92x92x14mm, 92x92x25mm



Scope of Delivery
  • NF-A9x14 PWM premium fan
  • Low-Noise Adaptor (L.N.A.)
  • NT-H1 high-grade thermal compound
  • SecuFirm2™ Mounting Kit
  • Screws for 92x92x25mm fans
  • Noctua Metal Case-Badge



Warranty   6 Years





Fan specifications



Model   Noctua NF-A9x14 PWM



Bearing   SSO2



Max. Rotational Speed (+/- 10%)   2500 RPM



Max. Rotational Speed with L.N.A. (+/- 10%)   1800 RPM



Min. Rotational Speed (PWM)   300 RPM



Max. Airflow   57,5 m³/h



Max. Airflow with L.N.A.   40,8 m³/h



Max. Acoustical Noise   23,6 dB(A)



Max. Acoustical Noise with L.N.A.   14,8 dB(A)



Input Power   2,52 W



Voltage Range   12 V



MTBF   > 150.000 h

Other Details

MPN:
NH-L9I
