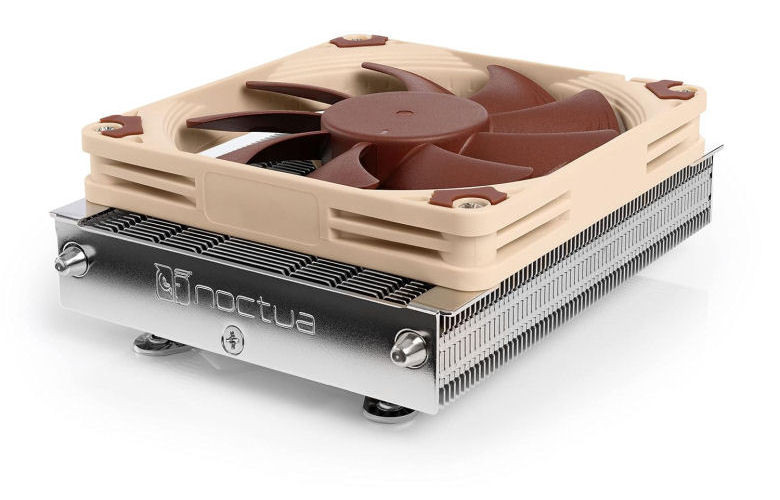

Noctua NH-L9a-AM5 Low-Profile AMD AM5 CPU Cooler

Price:
 $59.99
MPN:
 NH-L9a-AM5
Brand:
UPC:
 9010018000344
Availability: Ships in 2 business days
.
Shipping:
 Calculated at checkout


Add to Wishlist

Click the button below to add the Noctua NH-L9a-AM5 Low-Profile AMD AM5 CPU Cooler to your wish list.

SHARE
Pin It

Product Description

The NH-L9a-AM5 is a highly compact, quiet low-profile cooler designed for use in small form factor cases and HTPC environments. While it provides first-rate performance in its class, it is not suitable for overclocking and or CPUs that create high heat loads.




Height (without fan) 23 mm
Width (without fan) 114 mm
Depth (without fan) 92 mm
Height (with fan) 37 mm
Width (with fan) 114 mm
Depth (with fan) 92 mm
Material Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating


 Fan compatibility 92x92x14mm, 92x92x25mm
Scope of delivery

  • NF-A9x14 PWM premium fan
  • NA-RC7 Low-Noise Adaptor (L.N.A)
  • NT-H1 high-grade thermal compound
  • SecuFirm2™ AM5 mounting kit
  • Screws for 92x92x25mm fans
  • Noctua Metal Case-Badge

FAN Specification
Model Noctua NF-A9x14 HS-PWM
Bearing SSO2
Max. rotational speed (+/- 10%) 2500 RPM
Max. rotational speed with L.N.A. (+/- 10%) 1800 RPM
Min. rotational speed @ 20% PWM (+/-20%) 600 RPM
Max. airflow 57,5 m³/h
Max. airflow with L.N.A. 40,8 m³/h
Max. acoustical noise 23,6 dB(A)
Max. acoustical noise with L.N.A. 14,8 dB(A)
Input power (max.) 2,52 W
Voltage range 12 V
MTTF > 150.000 h

Other Details

MPN:
NH-L9a-AM5
