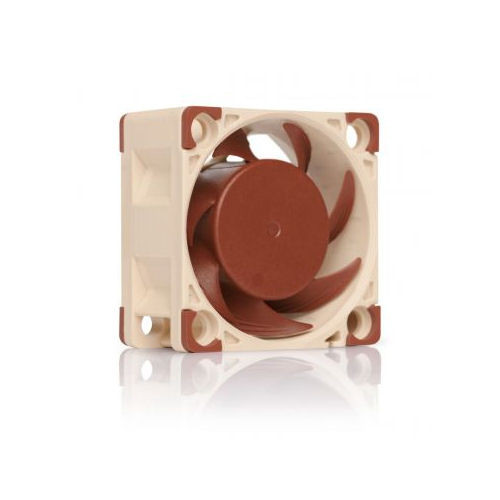

Noctua NF-A4x20 40mm x 40mm x 20mm AAO Frame SSO2 Bearing Fan

Price:
 $24.99
MPN:
 NF-A4x20
Brand:
UPC:
 841500110109
Condition:
 NEW
Availability: Ships in 2 business days
Ships in 2 business days
Shipping:
 Calculated at checkout


Add to Wishlist

Click the button below to add the Noctua NF-A4x20 40mm x 40mm x 20mm AAO Frame SSO2 Bearing Fan to your wish list.

SHARE
Pin It

Product Description

Size

40x40x20 mm
Mounting hole spacing

32x32 mm
Connector & pin-configuration

4-pin PWM
Cable length

20cm + 30cm NA-EC1 extension cable
Bearing

SSO2
Blade geometry

A-Series with Flow Acceleration Channels
Frame technology

AAO (Advanced Acoustic Optimisation)
Rotational speed (+/- 10%)

5000 RPM
Rotational speed with L.N.A. (+/- 10%)

4400 RPM
Min. rotational speed @ 20% PWM (+/-20%)

1200 RPM
Airflow

9,4 m³/h
Airflow with L.N.A.

8,3 m³/h
Acoustical noise

14,9 dB(A)
Acoustical noise with L.N.A.

12,2 dB(A)
Static pressure

2,26 mm H₂O
Static pressure with L.N.A.

1,75 mm H₂O
Input power (typical)

0,46 W
Input power (max.)

0,6 W
Input current (typical)

0,04 A
Max. input current

0,05 A
Operating voltage

12 V
Voltage PWM signal

5 V
MTTF

> 150.000 h
Scope of delivery

  • Low-Noise Adaptor (L.N.A.)
  • 4-pin y-cable
  • 30cm extension cable
  • OmniJoin™ adaptor set
  • NA-AV3 anti-vibration mounts
  • Fan screws

Other Details
