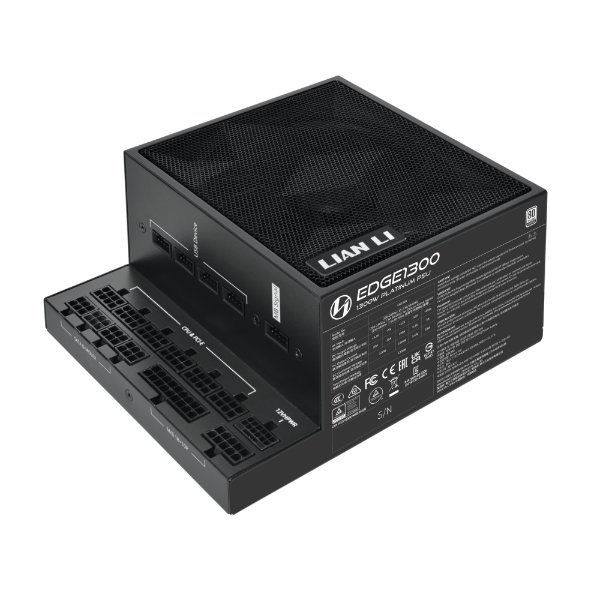

Lian Li EG1300BE.US EDGE 1300W 80 PLUS Platinum Power Supply

Price:
 $279.99
MPN:
 EG1300BE.US
Brand:
UPC:
 840353046160
Condition:
 NEW
Availability: Ships in 2 business days
.
Shipping:
 Calculated at checkout


Add to Wishlist

Click the button below to add the Lian Li EG1300BE.US EDGE 1300W 80 PLUS Platinum Power Supply to your wish list.

SHARE
Pin It

Product Description

  • Features
    • L-Shape design for dual chamber case
    • 80 PLUS Platinum Effieciency
    • ATX 3.0/3/1 compliant PSU
    • PCIe 5.1 ready with in-house R&D 12V-2x6 alloy copper soldered terminals
    • Built-in USB expantion hub with 4 internal USB 2.0 headers
    • Integrating German EPCOS bulk capacitors
    • Full modular sleeved cables with cable combs on MB/CPU/GPU connectors
  • ATX12V Version: V3.1
  • Color: Black
  • 80 Plus Efficiency: 80 Plus Platinum
  • DC Output Cable: Full Modular
  • Material: Steel
  • PFC: Active PFC, PF > 0.90 under full load @ 115Vac, 60Hz
  • Input Rating: 100-240Vac 15-7.5A 50-60Hz
  • MAX. DC Output: 1300W
  • Combined +12V: 1296 W
  • Combined +3.3V & +5V: 120W
  • Fan Spec: 120mm FDB Fan
  • Fanless mode: Yes
  • Working Temperature: 40 C
  • Connectors
    • 1 x 24/20-Pin motherboard connector (500mm) x1pcs
    • 1 x 8/4+4 Pin CPU/ATX 12V connector (550mm) x2pcs
    • 1 x 8/6+2 Pin PCle connector (550mm) x4pcs
    • 1 x 12V-2x6 connector (550mm) x1pcs
    • 1 x 12VHPWR - 2 x 8pin connector (550mm) x1pcs
    • 4 x 4-Pin Peripheral connector (500mm-150mm-150mm-150mm) x1pcs
    • 4 x SATA connector (400mm-150mm-150mm-150mm) x1pcs
    • 4 x SATA connector (300mm-15mm-15mm-15mm) x1pcs
    • 4 x Y Type SATA connector (400mm-125mm*2) x1pcs
    • USB*9pin - USB*9pin connector (350mm) x1pcs
    • USB*9pin -Type A connector (550mm) x1pcs
  • Dimensions: (D)182 mm x (W)86 mm x (H)150 mm
  • Dimension (inch)
    • Item Dimension: 9.53*6.93*4.02
    • Package Dimension: 20.67*14.65*10.31
