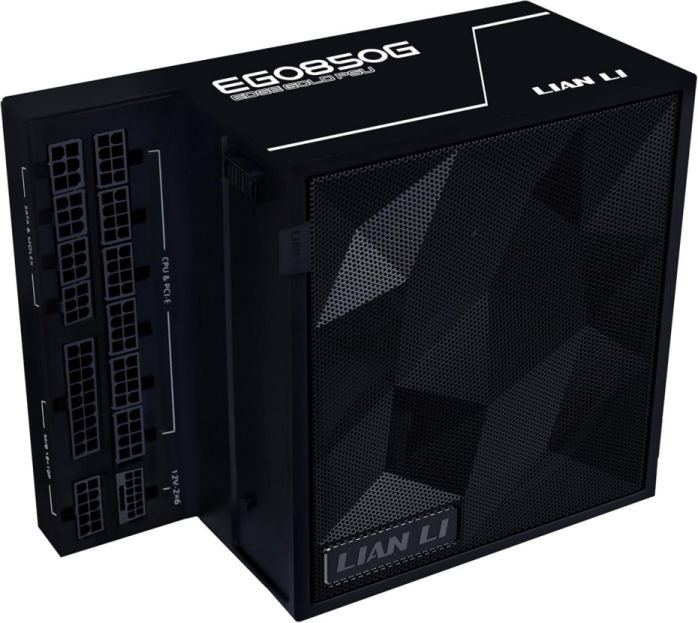

Lian Li EDGE GOLD 850 BLACK 850W 80+ Gold Full Modular ATX

Price:
 $147.00
MPN:
 EG0850G.B
Brand:
UPC:
 840353047020
Condition:
 NEW
Availability: Ships in 2 business days
.
Shipping:
 Calculated at checkout


Click the button below to add the Lian Li EDGE GOLD 850 BLACK 850W 80+ Gold Full Modular ATX to your wish list.

SHARE

Product Description

  • L-shape design tailored for dual chamber cases
  • 80 PLUS Gold efficiency
  • PCIe 5.1 ready with in-house R&D 12V-2×6 alloy copper soldered terminals
  • Detachable USB hub with 4 internal usB 2.0 headers and 6 PWM headers, offered in 1200W and 1000W
  • Removable magnetic fan dust filter
  • Built with German top-end, industrial-grade EPCOS capacitors
  • Fully modular braided-texture cables with pre-installed cable combs on MB/CPU/GPU connectors

SPECIFICATIONS

PRODUCT NAME EDGE GOLD 850
MODEL EG0850G
DIMENSIONS (D)182 mm X (W)86 mm X (H)150 mm
POWER SUPPLY DESIGN Fully modular
COLOR Black/ White
MATERIAL Steel
FORM FACTOR ATX 3.1
CERTIFICATION 80 PLUS GOLD / Cybenetics GOLD / PPLP GOLD
MAX. DC OUTPUT 850W
COMBINED +3.3V & +5V 120W
COMBINED +12V 849W
INPUT VOLTAGE 100-240Vac
INPUT FREQUENCY RANGE 10-5A 50-60Hz
PFC Active PFC, PF > 0.90 under full load @ 115Vac, 60Hz
EFFICIENCY 90.71%MAX
PROTECTIVE CIRCUIT OCP/OVP/OTP/OPP/SCP/UVP
CONNECTORS 1 x 24/20-Pin motherboard connector (620mm) x1pcs
1 x 8 pin CPU/ATX 12V connector (750mm) x1pcs
1 x 4+4 Pin CPU connector (750mm) x1pcs
1 x 6+2 Pin GPU connector (650mm+100mm) x1pcs
1 x SATA connector (300mm-15mm-15mm-15mm) x1pcs
1 x SATA-Y connector (375mm-150mm-150mm) x 1pcs
1 x SATA connector (400mm-150mm-150mm-150mm) x1pcs
4 x 4-Pin Peripheral connector (500mm-150mm-150mm-150mm) x1pcs
1 x 12V – 2X6 450W connector (650mm) x1pcs
2 x 6+2 Pin GPU connector (650mm) x2pcs
FAN TYPE 120mm FDB Fan
FAN SPEED 2000RPM
FAN NOISE LEVEL 30.9dBA
WARRANTY 10 Years ( Hub 2 Years )
