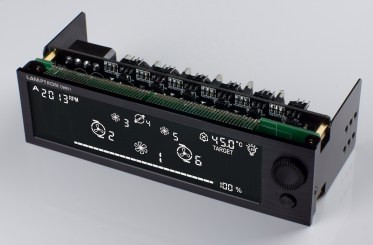

Dimension: 148.5mm*42.5mm*63mm(5.25″ Bay)
LCD Dimensions: 118mm*31mm
Power Output: Up to 36 watts per channel
Control Channel: 6 Channels (All usable in pump, flow meter or fan control mode)
Panel Color Available: Black Anodyzed / Silver
DC Input: +12v (Standard 4 Pin Molex / “D” Connector)
DC Output: 0V- 12V DC
Connectors: 6 X 2510-3pin connectors
Recommend PSU wattage: 550w or higher
