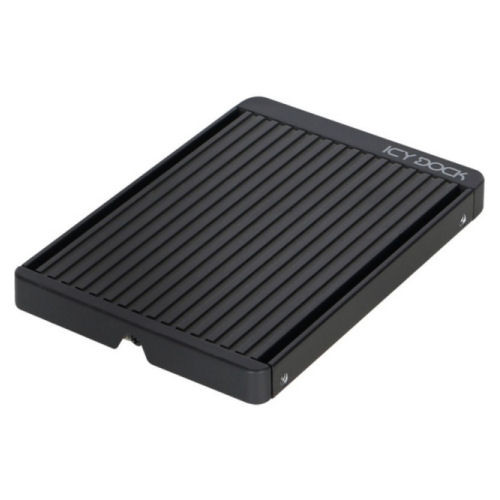

ICY DOCK MB705M2P-B NVMe M.2 SSD to 2.5 inch NVMe U.2 SSD Adapter

• Number of Solid State Drive Supported1
• Number of Solid State Drive InstalledNo
• Number of Total Expansion Bays1
• Wireless LANNo
• Host InterfaceU.2 (SFF-8639)
• Product ColorBlack
• Product Material
  • Metal
  • Acrylonitrile Butadiene Styrene (ABS)
• Form FactorExternal
• Compatible Drive Bay Width2.5"
• Height0.4"
• Width2.8"
• Depth4"
• Weight (Approximate)2.36 oz
• Package Contents
  • M.2 PCIe NVMe SSD to 2.5" U.2 PCIe SSD Converter Adapter
  • 6 x Screws
  • User Manual
  • Thermal Pads

ICY DOCKs EZConvert MB705M2P-B is a complete solution to convert any M.2 PCIe NVMe SSD into the exact dimensions and port locations as a standard 2.5-inch U.2 (SFF-8639) NVMe SSD. Designed for compatibility, it accepts all M.2 sizes from 30mm to 80mm (2230 / 2242 / 2260 / 2280) in length, mounting them without screws or tools, and allows these drives to be installed anywhere that accepts a bare 2.5-inch NVMe drive, such as an U.2 backplane, hot-swap bay, 2.5 mounting bracket, or in ICY DOCKs U.2 NVMe removable enclosures/mobile racks. The sturdy aluminum housing protects delicate M.2 circuit boards from bumps and drops, and the integrated heat sink with included thermal heat dissipation pads keep your drive running cool, even under heavy load.
Enable Hot-Swap
Because M.2 SSDs are not designed to be hot-swapped, their connectors are very delicate, typically rated for only 250 insertion/removal cycles. When used with the EZConvert MB705M2P-B, M.2 PCIe NVMe SSDs can be hot-swapped without putting any wear on the internal connector, instead using ICY DOCKs strong hot-swap connector rated for 10,000 insertion/removal cycles. Hot-swap makes it easy to add, remove, and replace drives without the need to restart the system.
Perfect Compatibility
EZConvert MB705M2P-B accepts any 30mm-80mm M.2 PCIe NVMe SSD (2230 / 2242 / 2260 / 2280) and gives it the exact same dimensions, port locations, and screw-hole locations as a standard 9.5mm U.2 NVMe SSD.
The 1-piece heat sink lid snaps on and off without screws or tools, revealing the drive bay for easy installation, removal, and replacement in only seconds.
