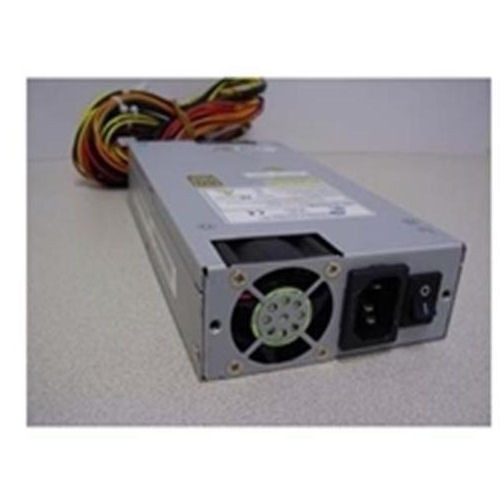

FSP FSP25050LC-B204 250W ATX 12V 1U FAN APFC 80+BROWN Power Supply

Price:
 $64.00
MPN:
 FSP25050LC-B204
Brand:
UPC:
 677808611716
Condition:
 NEW
Availability: Ships in 2 business days
.
Shipping:
 Calculated at checkout


Sorry but this item is currently unavailable.

Please check back at a later stage.

Click the button below to add the FSP FSP25050LC-B204 250W ATX 12V 1U FAN APFC 80+BROWN Power Supply to your wish list.

SHARE

Product Description

• Complied with ATX12V standard • Active Power Factor Correction (PFC) meet EN61000-3-2
• High efficiency and reliability
• Compatible with European Union Directive 2002/95/EC (Restriction on Hazardous Substances).
• Remote ON/OFF function
• Internal 12V DC fan included
• Low noise and ripple
• Output over voltage, short circuit, and over current protection
• 100% Hi-pot, ATE, and burn-in tested
• Re-settable power shut down
• Complies with FCC part 15 subpart J class B 115Vac operation, and CISPR 22 class B at 230Vac operation
• Approved by : UL/CUL60950-1 2nd TUV EN60950-1 2nd, CB 60950-1 2nd , FCC, EMC





Temperature Range
Operating: 0oC to +50o
storage and shipping: -20oC to +80oC
  Humidity:
85% on operating, 95% on storage
  Dielectric Withstand
Primary frame ground 1800V AC for 2 second
  Efficiency:
Typical > 85%
  Rise time
Less than 20ms
  Hold-up Time
14 ms minimum at 115V/60Hz.
  Power Good Signal
Power on delay time 100 to 500ms, off delay 1ms minimum (TTL and CMOS compatible)
  Leakage Current
Less than 3.5mA at 264Vac, 63Hz
  MTBF
100,000 hours on maximum load at +25oC
  Input Characteristics
Input Range: 90 to 264Vac, Full Range Input
Frequency: 47 to 63Hz
Input Current: Max 4.0A at 115Vac, 2.0A at 230Vac
Inrush Current: No Damage
  Output Characteristics
Output Voltage/ Minimum Load /Normal Load/ Maximum Load /Load Reg. / Ripple and Noise
+3.3V /0.3A /6A /12A / 5% /50mV P-P
+5V /0.5A /7A /14A / 5% /50mV P-P
+12V /1.0A /9A /18A / 5% /120mV P-P
-12V /0A 0/.15A /0.3A / 10% /120mV P-P
+5Vsb/ 0A /1.25A /2.5A / 5% /50mV P-P
  Item Dimension (L inchxW inchxH inch)
8 x 4 x 2

Other Details

MPN:
FSP25050LC-B204
