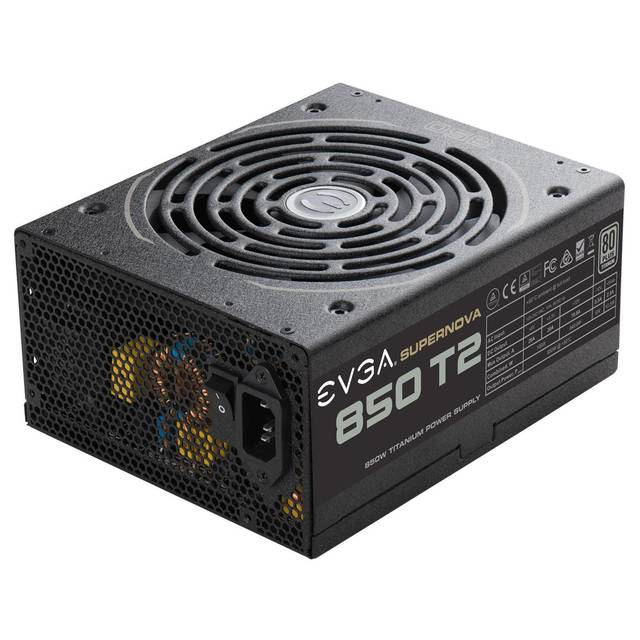

EVGA 220-T2-0850-X1 SuperNOVA 850 T2 850W 80 PLUS Titanium ATX12V & EPS12V Power Supply

Price:
 $329.00
MPN:
 220-T2-0850-X1
Brand:
UPC:
 843368035129
Availability: Ships in 2 business days
.
Shipping:
 Calculated at checkout


Add to Wishlist

Click the button below to add the EVGA 220-T2-0850-X1 SuperNOVA 850 T2 850W 80 PLUS Titanium ATX12V & EPS12V Power Supply to your wish list.

SHARE
Pin It

Product Description

  • Mfr Part Number: 220-T2-0850-X1
  • Features:Maximum Power: 850 W
    • Unbeatable 10 Year Warranty and unparalleled EVGA Customer Support
    • Highest quality Japanese brand capacitors ensure long-term reliability
    • Fully Modular to reduce clutter and improve airflow
    • NVIDIA SLI & AMD Crossfire Ready
    • Double Ball Bearing fan for exceptional reliability and quiet operation
    • Ultra Quiet Fan with ECO Intelligent Thermal Control Fan system (Zero Fan Noise < 45C)
    • 80 PLUS Titanium certified, with 94% (115VAC) / 96% (220VAC~240VAC) efficiency or higher under typical loads
    • Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), and OTP (Over Temperature Protection)
  • Input:Type: ATX12V / EPS12V
    • Voltage: 100 ~ 240 VAC
    • Current: 10 A
    • Frequency Range: 50 ~ 60 Hz
  • Efficiency: 94% (115VAC) / 96% (220VAC~240VAC) or Higher Typical
  • MTBF: 100,000 hours
  • Fan: 1x 140mm Double Ball Bearing
  • Output: +3.3V @ 20A, +5V @ 20A, +12V @ 70.8A, +5VSB @ 2.5A, -12V @ 0.5A
  • Connectors: 1x 24pin ATX Main Connector, 2x 8(4+4)pin EPS (CPU) Power Connector, 4x 8(6+2)pin PCI-Express Connectors, 2x 6pin PCI-Express Connectors, 10x SATA Connectors, 4x 4pin Peripheral Connectors, 1x Floppy Connector
  • Approvals: TUV, CB, CE, FCC, RCM, cTUVus, BSMI, CCC, WEEE, RoHS Compliance with ErP Lot 6 2013 Requirement
  • Dimensions (WxLxH): 150.0 x 180.0 x 85.0 mm
  • Weight: 8.0 lbs
