For Intel LGA 1366
• Core™ i7 i7-920~i7-960
• Core™ i7 Extreme Edition i7-965~i7-980X
For Intel LGA 1156
• Core™ i7 i7-860~i7-870
• Core™ i5 i5-680~i5-750/i5-750S/i5-655K
• Core™ i3 i3-530~i3-550
For Intel LGA 1155
• Core™i7 2600/2600k/2600S
• Core™i5 2300~2500/2400S/2500S/2500K/2500T
For Intel LGA 775
• Core2 Duo up to~E8600
• Core2 Extreme up to~QX9770/X6800
• Core2 Quad up to~Q9650
• Pentium D up to~960
• Pentium Dual Core up to~E6500/E6500K
• Pentium Extreme up to~965
• Pentium 4 up to~672
• Pentium 4 Extreme up to~3.73G Hz
• Celeron up to~365/E3300
For AMD K8/AM2/AM2+/AM3 • AMD Phenom™ II X6 Black Edition 1090T • AMD Phenom™ II X6 1055T • AMD Phenom™ II X4 805~965/B93~B95/900e~905e • AMD Phenom™ II X3 710~720/700e~705e/B73~B75 • AMD Phenom™ II X2 545~555/B53~B55 • AMD Athlon™ II X4 620~635/600e~605e • AMD Athlon™ II X3 425~440/400e~405e • AMD Athlon™ II X2 215~255/235e~240e/B22~B24/250u~260u • AMD Phenom™ X4 9500~9950/9100e~9450e • AMD Phenom™ X3 8450~8750/8250e~8450e • AMD Athlon™ X2 up to 6400+/7850/BE-2400/5050e • AMD Athlon™ 64 up to 4000+/LE-1640 • AMD Athlon™ 64 FX up to FX-62 • AMD Sempron™ up to 3800+/140/LE-1300 • Quad-Core AMD Opteron™ up to 1389/1224SE/1218HE |

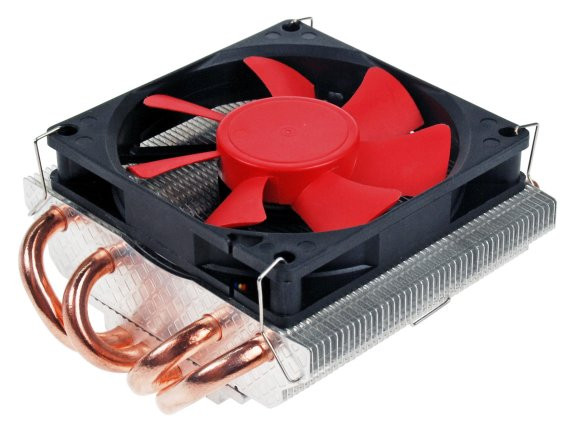

• 1.5U low height design cooler for slim type cases.
• 4 heat pipes with direct contact tech maximize heat conductivity.
• PWM smart fan will automatically adjust the fan speed according to the temperature of CPU for a silent operation.
• Compatible with Intel LGA1366/LGA1156/LGA775 and AMD Socket AM3/AM2/AM2+/940/939/754.
Overall Dimension : | 106 x 95 x 45 mm | |
Heat Sink Material : | 4 Heatpipes + Al Fin + H.D.T. Core |
|
Bearing Type : | EL long life bearing (Life Expectancy at 25°C 50000HR) |
|
Noise Level : | 12~40 dBA | |
Rated Speed : | 1000 ± 25% ~ 4000 ± 10% RPM (PWM ) |
|
Rated Voltage : | 12 V.DC | |
Weight : | 320 g |
