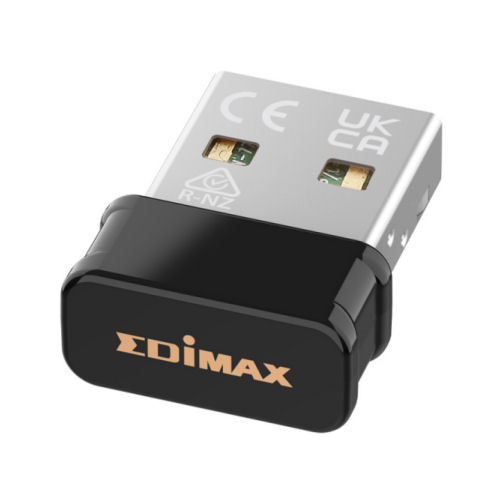

EDIMAX EW-7611ULB V2 2-in-1 Nano Wi-Fi4 N 150/Bluetooth 4.2 USB Adapter

Price:
 $19.99
MPN:
 EW-7611ULB V2
Brand:
UPC:
 649659025615
Condition:
 NEW
Availability: Ships in 2 business days
.
Shipping:
 Calculated at checkout


Click the button below to add the EDIMAX EW-7611ULB V2 2-in-1 Nano Wi-Fi4 N 150/Bluetooth 4.2 USB Adapter to your wish list.

SHARE

Product Description

  • 2-in-1: Supports both Wi-Fi 4 and Bluetooth 4.2 simultaneously
  • Bluetooth 4.2: BQB Certified
  • Bluetooth Dual Mode: Supports Classic (BR/EDR) and LE (Low Energy) modes, with speeds of up to 3Mbps and 1Mbps respectively
  • Wi-Fi Compatibility: The Wi-Fi is compatible with 802.11 b/g/n, with speeds of up to 150Mbps
  • Wi-Fi Security: High level Wi-Fi security is supported, including WPA3-SAE (Personal), WPA2, WPA, WEP, and 802.1X
  • Application: IoT in embedded systems and entertainment/control in desktop and laptop
  • Supported OS: Windows and Linux
Interface
  • 1 x USB 2.0 Type A
LED Indicator
  • 1 x Dual-Color LED (Link/Act/WPS) for Wi-Fi and Bluetooth
Antenna
  • 1 x Internal Antenna (1T1R)
Dimensions
  • 18.9 (L) x 14.9 (W) x 7.1 (H) mm
Weight
  • 3g
 WIRELESS
Standards
  • 2.4GHz : IEEE 802.11 b/g/n
  • 2.4GHz : Bluetooth 4.2, 4.0, 2.1
Frequency Band
  • 2.4GHz: 2.4000~2.4835GHz
*Subject to local regulations.
Maximum Data Rate/Speed
  • 11b : 11Mbps
  • 11g : 54Mbps
  • 11n : 150Mbps
  • Bluetooth BR/EDR : 3Mbps
  • Bluetooth LE : 1Mbps
Transmit Power 2.4GHz:
  • 11b(11Mbps) : 17dBm±1.5dBm
  • 11g(54Mbps) : 14dBm±1.5dBm
  • 11n(20MHz, MCS7) : 13dBm±1.5dBm
  • 11n(40MHz, MCS7) : 13dBm±1.5dBm
Receiver Sensitivity 2.4GHz:
  • 11b(11Mbps) : -82dBm±2dBm
  • 11g(54Mbps) : -68dBm±2dBm
  • 11n(20MHz, MCS7) : -66dBm±2dBm
  • 11n(40MHz, MCS7) : -64dBm±2dBm
Security
  • WPA3-SAE(Personal), WPA2, WPA, WEP and 802.1x
  • Software WPS (Wi-Fi Protected Setup, driver installation required.)
OTHERS
Supported
Operating System
  • Windows 7/8/8.1/10/11 ( Wi-Fi & Bluetooth )
  • Linux kernel 4.4 ~ 5.11 ( Wi-Fi & Bluetooth)
*Additional version information may be announced on the EDIMAX website.
Environmental
Condition
  • Temperature:
    •Operating: 0~40°C (32~104°F)
    •Storage: -20~65°C (-4~149°F)
  • Humidity:
    •Operating: 10~90% (Non-condensing)
    •Storage: 10~90% (Non-condensing)
Certification
  • BQB, CE , FCC, IC, RCM, WPC



Other Details

MPN:
EW-7611ULB V2
