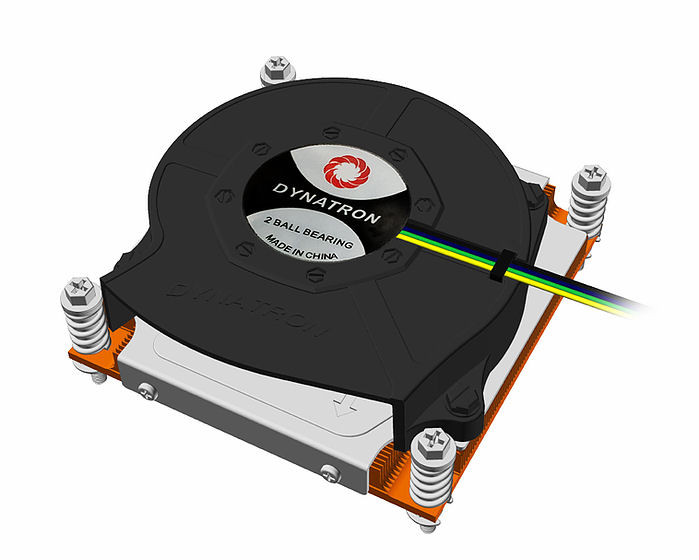

Dynatron T06 Intel LGA 115X/LGA 1200 80mm PWM Blower 125W 1U Active Cooler

Price:

$44.00

MPN:

T06

Brand:

DYNATRON

UPC:

Condition:

NEW

Availability: Ships in 2 business days

Shipping:

Calculated at checkout

Add to Wishlist

Product Description

Recommend for Intel® Socket LGA 115X and LGA 1200, 80 x 80 x 15mm fan with PWM function, Copper Heatsink with Skiving Fins . Support 125 Watts CPU Power Heat Dissipation for 1U&Up Server Solution.

CPU Support	Intel
CPU Socket	LGA 115X/1200
Solution	1U Server
Dimensions	85.0 x 81.5 x 28.2mmmm
Weight	355g ± 5g
Material	Copper Heatsink with Skiving Fins
Fan Dimension	Ø80.0 x 15.0 mm
Speed	At Duty Cycle 0~20%: 1000±200 RPM At Duty Cycle 50%: 3500±10% RPM At Duty Cycle 100%: 7000 RPM
Bearing	2 Ball Bearing
Rated Voltage	12V
Power	At Duty Cycle 0~20%: 0.60 W At Duty Cycle 50%: 3.84 W At Duty Cycle 100%: 19.2 W
Air Flow	At Duty Cycle 0~20%: 6.5 CFM At Duty Cycle 50%: 11.2 CFM At Duty Cycle 100%: 22.28 CFM
Noise Level	At Duty Cycle 0~20%: 21.5 dBA At Duty Cycle 50%: 43.0 dBA At Duty Cycle 100%: 59.14 dBA
Static Pressure	At Duty Cycle 0~20%: 2.27 mm-H2O At Duty Cycle 50%: 18.56 mm-H2O At Duty Cycle 100%: 74.18 mm-H2O
Lead Wire Pin Out	Pin1-Black (-) Pin2-Yellow (+) Pin3-Green (Techometer/Signal output) Pin4-Blue (PWM)
