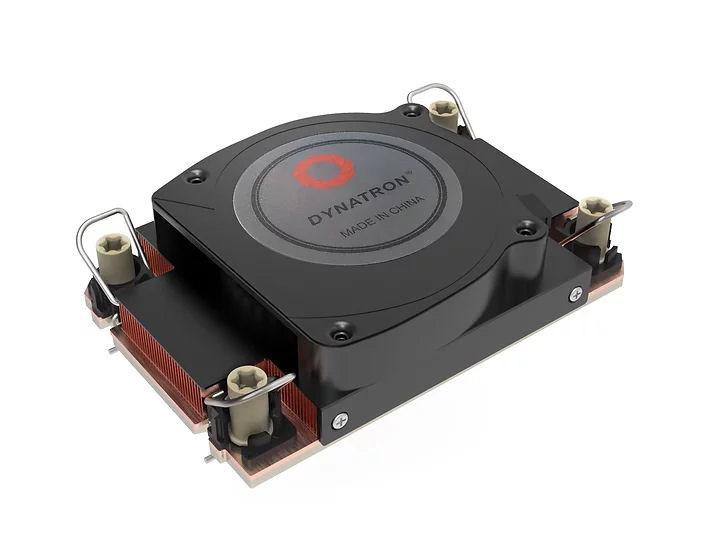

Dynatron S7 Intel FCLGA 4677 Socket Active 1U CPU Cooler

Price:

$64.99

MPN:

Brand:

DYNATRON

Condition:

NEW

Shipping:

Calculated at checkout

Add to Wishlist

Product Description

Recommend for Intel® Sapphire Rapids Processor, Socket FCLGA 4677, Active Cooler for 1U Server and up, Copper Heatsink with Vapor Chamber Base, Steel Dual-Outlet PWM Blower, Support 205 Watts CPU Power Heat Dissipation.

CPU Support	Intel
CPU Socket	FCLGA 4677
Solution	1U Server and Up
Dimensions	118.6 x 80.5 x 27.4 mm
Weight	424.6 g
Material	Copper 1100 Heatsink with Vapor Chamber Base
Fan Dimension	80 x 13 mm
Speed	At Duty Cycle 0~20%: 1900 ± 200 RPM At Duty Cycle 50%: 4800 ± 10% RPM At Duty Cycle 100%: 8700 ± 10% RPM
Rated Voltage	12V
Bearing	Double Ball
Power	At Duty Cycle 20%: 1.08 W At Duty Cycle 50%: 4.7 W At Duty Cycle 100%: 23.45 W
Air Flow	At Duty Cycle 20%: 4.0 CFM At Duty Cycle 50%: 10.39 CFM At Duty Cycle 100%: 18.97 CFM
Noise Level	At Duty Cycle 20%: 23.3 dBA At Duty Cycle 50%: 43.5 dBA At Duty Cycle 100%: 62.2 dBA
Air Pressure	At Duty Cycle 20%: 3.15 mm-H2O At Duty Cycle 50%: 21.07 mm-H2O At Duty Cycle 100%: 77.16 mm-H2O
Lead Wire Pin Out	Pin#1-Black(-) Pin#2- Yellow(+) Pin#3- Green(Tachometer/ Signal Output) Pin#4- Blue (PWM)
Thermal Grease	Shin-Etsu 7762 Pre-printed
