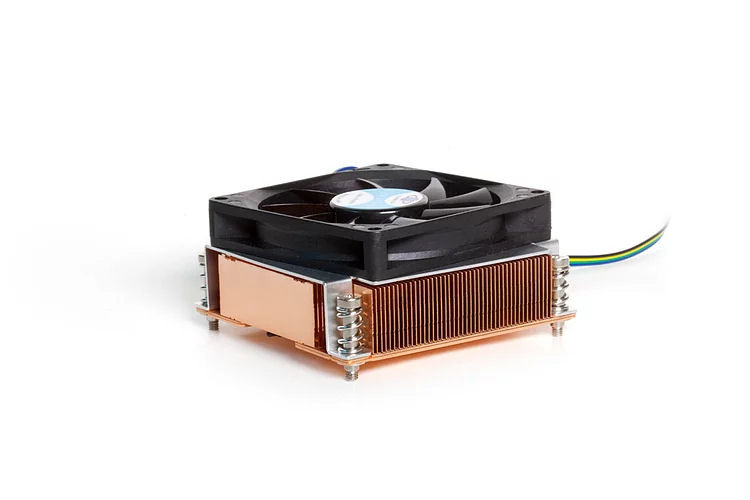

Dynatron R30 1.5U Active Socket 2011 Vapor Chamber Copper CPU Cooler

Price:

$49.99

MPN:

R30

Brand:

DYNATRON

Condition:

NEW

Availability: Ships in 2 business days

Ships in 2 business days

Shipping:

Calculated at checkout

Add to Wishlist

Product Description

80x80x15mm fan with PWM function, Vapor chamber base with copper fin up to TDP 165 Watts for 2U server and  Up solution.

CPU Support	Intel
CPU Socket	LGA 2011 (Square Type, 80mm x 80mm Mounting Pitch) / LGA 2066
Solution	2U Server and Up
Dimensions	90.0 x 90.0 x 41.5 mm
Weight	480 g
Material	Vapor Chamber heatsink with Copper Stacked Fins
Fan Dimension	80 x 80 x 15 mm
Speed	At Duty Cycle 20%: 1000 RPM At Duty Cycle 50%: 2500 RPM At Duty Cycle 100%: 4000 RPM
Bearing	2 Ball Bearing
Rated Voltage	12V
Power	At Duty Cycle 20%: 1.2 W At Duty Cycle 50%: 2.4 W At Duty Cycle 100%: 5.4 W
Air Flow	At Duty Cycle 20%: 9.2 CFM At Duty Cycle 50%: 30.8 CFM At Duty Cycle 100%: 48.6 CFM
Noise Level	At Duty Cycle 20%: 17.0 dBA At Duty Cycle 50%: 27.3 dBA At Duty Cycle 100%: 40.2 dBA
Air Pressure	At Duty Cycle 20%: 0.30 mm-H2O At Duty Cycle 50%: 2.60 mm-H2O At Duty Cycle 100%: 5.9 mm-H2O
Lead Wire Pin Out	Pin1-Black (-) Pin2-Yellow (+) Pin3-Green (Tachometer/Signal output) Pin4-Blue (PWM)
Thermal Grease	Pre-Printed Shin-Etsu 7762 Thermal Grease
