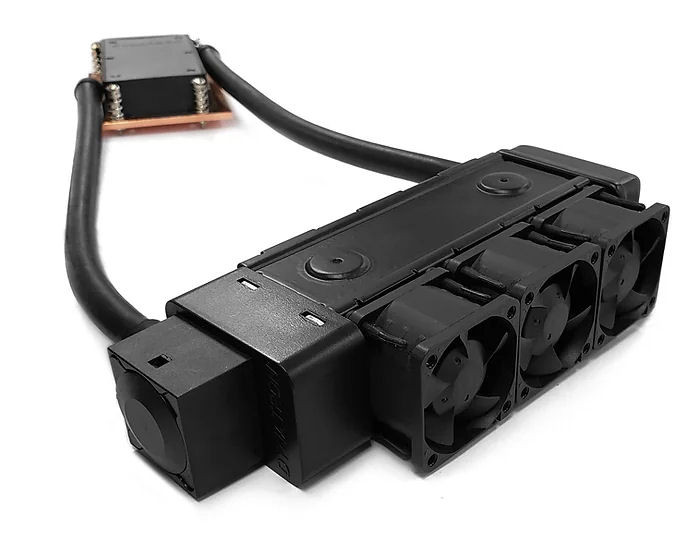

Recommended for AMD® Ryzen Threadripper Processor, Socket sWRX8, sTRX4, TR4, and AMD® Epyc Processor Socket SP3, All-in-one Liquid Cooler for 1U Server, Three 4 cm cooling fans with 4-pin PWM Connector, Support CPU Overclocking Power Mode up to 280 Watts Heat Dissipation
CPU Support |
AMD® |
---|---|
CPU Socket |
Socket sWRX8/sTRX4/TR4/SP3 |
Solution |
1U Server |
Fan Dimension | 40.0 x 40.0 x 28.0 mm |
Speed |
At Duty Cycle 0~20%: 2000 ± 10% RPM |
Bearing |
2 Ball Bearing |
Rated Voltage |
12V |
Power |
At Duty Cycle 0~20%: 2.40 W |
Air Flow |
At Duty Cycle 0~20%: 2.944 CFM |
Noise Level |
At Duty Cycle 0~20%: 16.00 dBA |
Air Pressure |
At Duty Cycle 0~20%: 0.61 mm-H2O |
Lead Wire Pin Out |
Pin1- (-) Pin3- (Tachometer output) Pin4- (PWM Control) |
Water Pump |
Stand-alone Water Pump in flow rate 1.7 Liter Per Minute |
