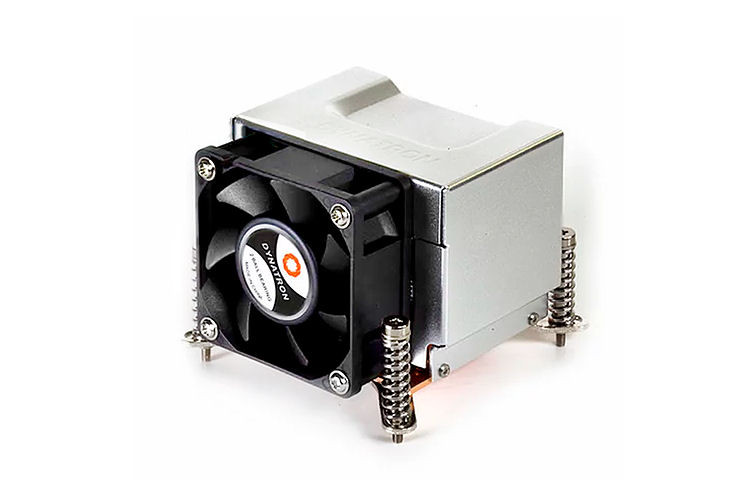

Dynatron K21 Intel Socket LGA1200/115x Active 2U CPU Cooler

Price:

$47.99

MPN:

K21

Brand:

DYNATRON

Condition:

NEW

Availability: Ships in 2 business days

Shipping:

Calculated at checkout

Add to Wishlist

Product Description

Recommend for Intel® Socket LGA 1150, LGA 115X and LGA 1200, 60 x 60 x 25 mm Fan with PWM function, Copper Base & Aluminum Fins with Heatpipes Embedded, Active Cooler for 2U Server and Up, Support CPU Power up to 125 Watts Heat Dissipation.

CPU Support	Intel
CPU Socket	Socket LGA115X/1200
Weight	500 g
Material	Copper Base & Aluminum Fins with Heat Pipe embedded
Solution	2U Server and Up
Dimensions	90.7 x 85.0 x 64.0 mm
Fan Dimension	60 x 60 x 25 mm
Rated Voltage	12V
Bearing	2 Ball Bearing
Speed	At Duty Cycle 20%: 1600+ 200 RPM At Duty Cycle 50%: 4000+ 10% RPM At Duty Cycle 100%: 8000-0/+500 RPM
Power	At Duty Cycle 0~20%: 1.20 W At Duty Cycle 50%: 2.28 W At Duty Cycle 100%: 7.20 W
Air Flow	At Duty Cycle 0~20%: 9.28 CFM At Duty Cycle 50%: 23.21 CFM At Duty Cycle 100%: 46.41 CFM
Air Pressure	At Duty Cycle 0~20%: 0.76 mm-H2O At Duty Cycle 50%: 4.76 mm-H2O At Duty Cycle 100%: 19.04 mm-H2O
Acoustical Noise	At Duty Cycle 0~20%: 18 dBA At Duty Cycle 50%: 37.89 dBA At Duty Cycle 100%: 52.94 dBA
Lead Wir Pin Out	Pin1- (-) Pin2- (+) Pin3- (Techometer/Signal output) Pin4- (PWM)
