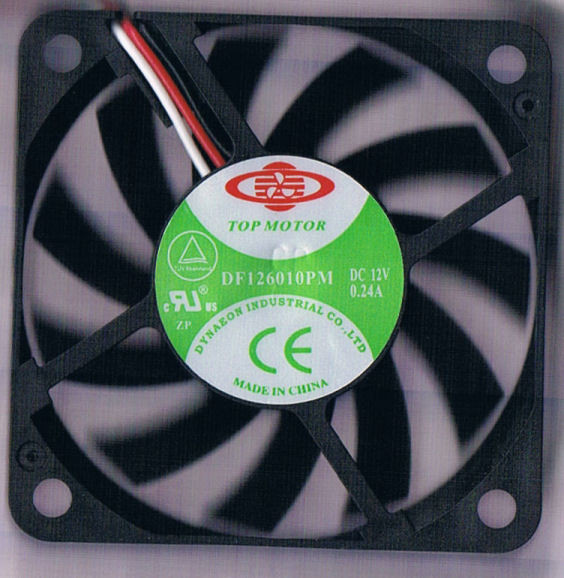

Dynatron DF126010PM-3G 60x60x10mm Ball Bearing Fan, 3Pin

Price:
 $3.89
MPN:
 DF126010PM-3G
Brand:
Condition:
 NEW
Availability: Ships in 2 business days
Ships in 2 business days
Shipping:
 Calculated at checkout


Sorry but this item is currently unavailable.

Please check back at a later stage.

Add to Wishlist

Click the button below to add the Dynatron DF126010PM-3G 60x60x10mm Ball Bearing Fan, 3Pin to your wish list.

SHARE
Pin It

Product Description

  • Mfr Part Number: DF126010PM-3G
  • Material: Plastic Material UL 94V-0
  • Dielectric Strenth: 50/60 Hz, 500 VAC, 1 minute (between lead conductor and frame)
  • Insulation Resistance: 50M ohm min. at 500 VDC (between lead wire(+) and frame)
  • Bearing System: Ball
  • Rated Voltage: 12 V
  • Input Current: 0.24 A
  • Input Power: 2.88 W
  • Speed: 4500 ±10% rpm
  • Air Flow: 19.86 CFM
  • Static Pressure: 3.77 mm-H2O
  • Noise Level: 33.84 dBA
  • MTBF (Operating temp. 25°C): 35,000 hours
  • 3pin connector
  • Dimension: 60 x 60 x 10 mm

    • Other Details
