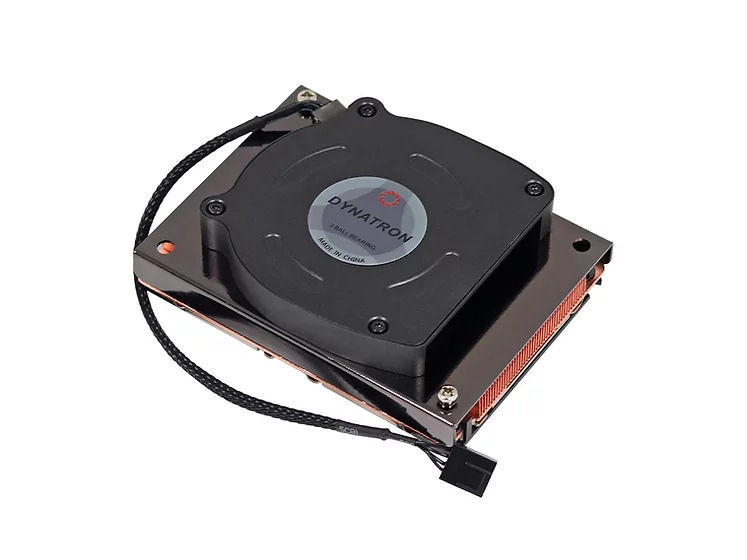

Dynatron B22 Intel® XEON FCLGA 3647 Narrow ILM 1U Active CPU Cooler

CPU Support

Intel® Xeon ® Platinum / Gold / Silver/ Bronze Family Processor (formerly Cascade Lake, Skylake)

CPU Socket

FCLGA 3647 Narrow ILM

Solution

1U Server and Up

Dimensions

108 x 81 x 28 mm

Weight

500g

Material

Copper1100 Heatsink with Vapor Chamber Base

Fan Dimension

Ø80 x 13 mm

Speed

At Duty Cycle 20%: 2000 ± 200 RPM
At Duty Cycle 50%: 4900 ± 10% RPM
At Duty Cycle 100%: 8600 ± 10% RPM

Bearing

Ball Type, Double

Rated Voltage

12V

Power

At Duty Cycle 20%: 1.08 W
At Duty Cycle 50%: 4.70 W
At Duty Cycle 100%: 23.45 W

Air Flow

At Duty Cycle 20%: 5.59 CFM
At Duty Cycle 50%: 14.76 CFM
At Duty Cycle 100%: 26.25 CFM

Noise Level

At Duty Cycle 20%: 23.3 dBA
At Duty Cycle 50%: 43.5 dBA
At Duty Cycle 100%: 62.2 dBA

Static Pressure

At Duty Cycle 20%: 3.69 mm-H2O
At Duty Cycle 50%: 25.28 mm-H2O
At Duty Cycle 100%: 89.8 mm-H2O


Lead Wire Pin Out

Pin1-Black (-)
Pin2-Yellow (+)
Pin3-Green (Techometer/Signal output)
Pin4-Blue (PWM)
