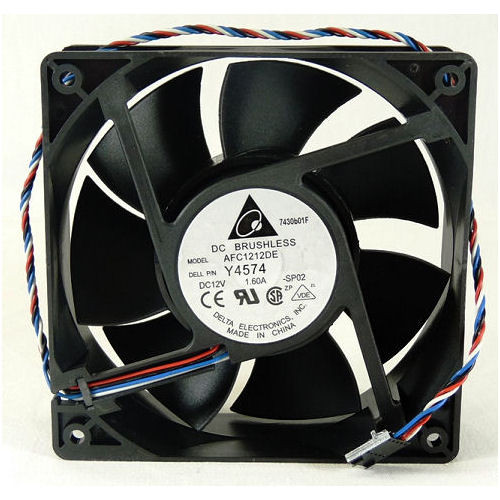

Delta AFC1212DE-SP02 (Dell P/N Y4574) 120X38mm Extreme HI Speed Fan, Dell 5Pin

Price:
 $29.99
MPN:
 AFC1212DE-SP02
Brand:
Condition:
 NEW
Availability: Ships in 2 business days
Ships in 2 business days
Shipping:
 Calculated at checkout


Add to Wishlist

Click the button below to add the Delta AFC1212DE-SP02 (Dell P/N Y4574) 120X38mm Extreme HI Speed Fan, Dell 5Pin to your wish list.

SHARE
Pin It

Product Description

Fan Size 120mm
Bearing Type Ball Bearings
RPM 3900 RPM
Air Flow 148.34 CFM
Noise Level 51 dBA
Color Black
Physical Spec
Dimensions 120 x 120 x 38mm
Features
Features Rated Voltage : 12V

Operating Voltage Range : 4 ~ 13.4 V

Input Current : 1.60 Amp

Input Power : 19.20 Watt

Maximum Air Pressure : 15.29 mm H²O

This Delta AFC1212DE 120x38mm fan is special made for Dell computers, it is compatible with Dell P/N: D8794 ,Y4574, H7058, D6168, D8794,CH9743, G9096
Dell Dimension: 3100 5100 5150 E310 E510 E520 E521 9100, 9150, 9200, XPS 400, XPS 410

Dell Precision: 380, 390

Dell PowerEdge: SC440, SC430 830

Dell Precision Workstation: 690, 380, 390

Dell Optiplex Systems: GX280-05 210L, GX320, GX520 MT, GX620 MT, GX740, GX745, GX745c

It comes with 4 wire lead (white=TAC sensor, red=power, black=gnd, blue=PWM control) to 5 pin Dell connector

PWM fans provide additional airflow by using Pulse Width Modulation (PWM) to automatically adjust fan speed according to the CPU load. The fan can be idled down and thus be much quieter. The PWM chip in the motor allows an exact fan speed control via BIOS.
