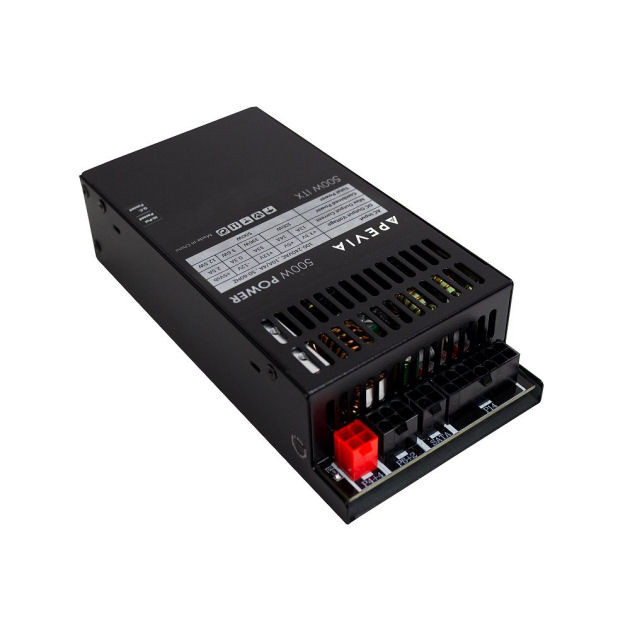

Apevia ITX-PFC500W 500W Mini-ITX/Flex ATX Power Supply

Price:
 $64.99
MPN:
 ITX-PFC500W
Brand:
UPC:
 810047131816
Condition:
 NEW
Availability: Ships in 2 business days
.
Shipping:
 Calculated at checkout


Click the button below to add the Apevia ITX-PFC500W 500W Mini-ITX/Flex ATX Power Supply to your wish list.

SHARE

Product Description

-APEVIA ITX-PFC500W Standard 500W ITX Form Factor ATX Power Supply. Full Range Active PFC 90-264V. Maximum Power: 500W.
-Fully Modular Power Supply Design
-Output: +3.3V@12A, +5V@14A, +12V@33A, -12V@0.3A, +5Vsb@2.5A
-High stability with 5% tolerance of 5V, 3.3V & 12V output
-High quality components and housing
-Various protections including: Overvoltage Protection (OVP), Overload Protection (OLP), Overcurrent Protection (OCP), Heating Protection (OTP), and Short Circuit Protection (SCP)
-Cooling: Forced Air Ventilation by 1 x 40mm Double Ball Bearing Fan
-Power cord
-Retail box
-1 x 20 + 4 pin main connector can be used for 20 pin or 24 pin
-1 x ATX12V P4+4pin connector can be used as 12V 8pin or 4pin (Removable by pushing out one of the 4pins)
-2 x 6+2 PCIE graphics card connector can be used as an 8pin or 6pin (Removable by pushing out the 2pin)
-2 x SATA connector
-2 x 4 pin peripheral connector
Max. Power: 500W
Material: Metal
Color: Black
Switches: N/A
Input: Full Range Active PFC 90-264V
Output: +3.3V@12A, +5V@14A, +12V@33A, -12V@0.3A, +5Vsb@2.5A
Connectors: 1 x 20+4pin Main Power, 1 x 8pin 12V(P4+4), 2x 6+2 PCIE, 2 x SATA, 2 x 4pin Molex
Cooling: Forced Air Ventilation by 1 x 40mm Double Ball Bearing Fan
Dimension(L x W x H): 160mm x 73.66mm x 35.5mm (6.3" x 2.9" x 1.4")

Other Details

MPN:
ITX-PFC500W
