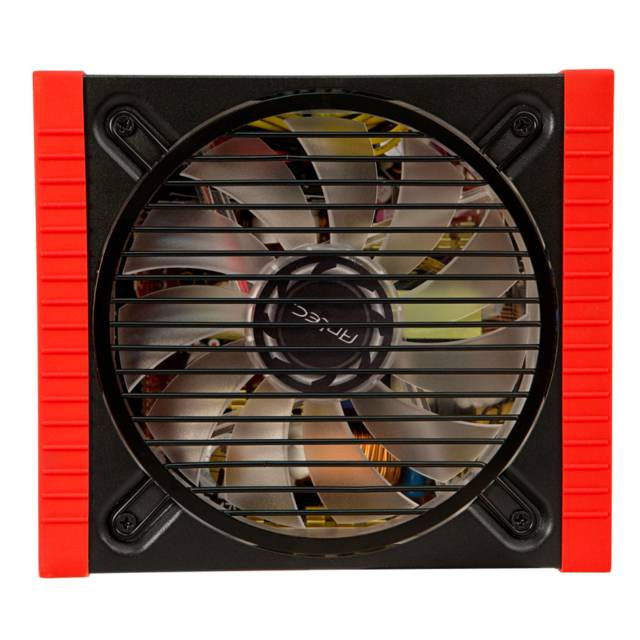

Antec EDG750 EDGE 750W 80 PLUS Gold ATX12V 2.4 & EPS12V 2.92 Power Supply

Price:
 $139.00
MPN:
 EDG750
Brand:
UPC:
 7.61E+11
Condition:
 NEW
Availability: Ships in 2 business days
Ships in 2 business days
Shipping:
 Calculated at checkout


Add to Wishlist

Click the button below to add the Antec EDG750 EDGE 750W 80 PLUS Gold ATX12V 2.4 & EPS12V 2.92 Power Supply to your wish list.

SHARE
Pin It

Product Description

  • Mfr Part Number: EDG750
  • Features:
    • 750W Continuous Power - Guaranteed 750W of Continuous Power from Antec
    • 80 PLUS GOLD certified - Up to 92% efficient, to reduce your electricity bill
    • AQ5 - Antec Quality 5 year warranty and lifetime global 24/7 support
    • 16-pin Socket - Industry-leading 16-pin sockets double the modular connectivity by supporting 2 different 8-pin cables per socket and allow for future connector changes
    • 135 mm LED FDB Silence - Whisper-quiet high-quality LED fluid-dynamic bearing fan with long lifetime
    • Thermal Manager - An advanced low voltage fan control for optimal heat & noise management
    • High Current Rails - 2 +12V rails with high load capabilities ensure maximum CPU & GPU compatibility
    • 99.2% +12V - Output for maximum CPU & GPU support
    • 28(18+10)-pin MBU socket - For possible future MBU connectors
    • CircuitShield - Full suite of industrial grade protections: Over Current Protection (OCP), Over Voltage Protection (OVP), No Load Operation (NLO), Short Circuit Protection (SCP), Over Power Protection (OPP), Over Temperature Protection (OTP) & Surge & Inrush Protection (SIP)
    • Japanese Heavy-Duty Caps - High-performance Japanese capacitors ensure tightest DC stability and regulation
    • Flat Stealth Wires - Flat and darkened wires for minimal visibility in chassis (except MBU cable)
    • ATX12V 2.4 - Engineered according to the newest PSU guideline and compatible with the latest CPU generation
  • Maximum Power: 750 W
  • Input:
    • Voltage: 100 - 240 VAC ±10%
    • Current: 10 - 5A
    • Frequency Range: 50 - 60 Hz
  • Type: ATX12V 2.4 & EPS12V 2.92
  • Power Factor Correction: Active PFC
  • Efficiency: Up to 92%
  • Fan: 1x 135mm Fluid Dynamic Bearing Fan
  • MTBF: ≥100,000 hours
  • Output: +3.3V @ 20A, +5V @ 20A, +12V1 @ 40A, +12V2 @ 40A, -12V @ 0.3A, +5Vsb @ 2.5A
  • Connectors: 1x 20+4pin Main Power Connector, 1x 4+4pin ATX12V/EPS12V Connector, 1x 8pin EPS12V Connector, 6x 6+2pin PCI-Express Connectors, 9x SATA Connectors, 6x Molex Connectors, 1x Floppy Connector
  • Safety Approvals: cTUVus, FCC, CB, CE, TUV, CCC, RCM, BSMI, Gost-R
  • Dimensions (WxDxH): 5.9 x 6.7 x 3.4 inch / 150.0 x 170.0 x 86.0 mm
  • Weight: 4.0 lbs / 1.8 kg (w/o modular cables)

Other Details

MPN:
EDG750
